5BG Seed Coating Machine
5BG Continuous Seed Treaters are widely used for seed treating with chemicals, typically fertilizers, antimicrobials, fungicides, or pesticides. The chemical dressing agent is applied on the grain in a continuous flow. Several seed dressing agents can be dosed at the same time.
Details
5BG Seed Coating Machine
Description
5BG Continuous Seed Treaters are widely used for seed treating with chemicals, typically fertilizers, antimicrobials, fungicides, or pesticides. The chemical dressing agent is applied on the grain in a continuous flow. Several seed dressing agents can be dosed at the same time.Construction

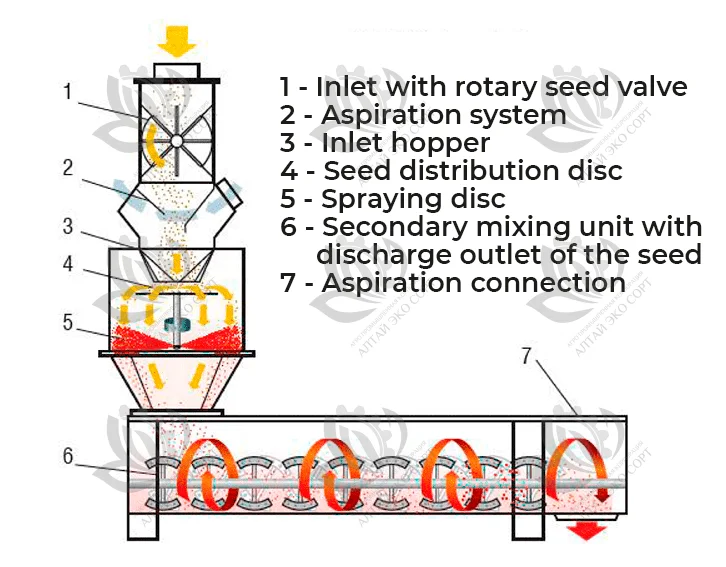

1. Seed intake system: impeller type feeder and inverter. Featuring continuous feeding, adjustable feed volume.2. Dressing liquid supply system: liquid tank, metering pump, 3-way valve. Can be set to manual sampling mode automatic liquid supply mode by 3-way valve.
3. Seed and dressing liquid preliminary mixing system: two rotary disks, upper for seed and lower for dressing liquid spray, synchronously driven by motors. Waved liquid disk with high-speed centrifugal rotation can make finer atomization and more uniform dressing layer. Sensor for disk access panel will stop running when the panel is open for safe maintenance.
4. Cleaning mechanism: soft brush driven by motor, to remove the material and liquid on inner wall of preliminary mixer chamber, and meanwhile, mix the material.
5. Mixer: including a removable mixing shaft and a shaft mounted speed reducer. The shifting forks and blades on shaft will further mix the material with liquid and discharge.
Features
- Compact and closed structure;
- Adjustable intake of seeds;
- Manual & automatic liquid supply;
- Extremely fine spray in preliminary mixer;
- Even distribution of seed dressing agent in secondary mixer Easy to clean-up;
- Gentle handling of seeds;
- Continuous, reliable and simple operation, high capacity.
Specification
| Model |
Capacity (on wheat), t/h |
Power, kW |
Dosing Rate |
Weight. kg |
Overall size, mm |
|---|---|---|---|---|---|
| 5BG-5 | 5 | 2.42 | 1:25-1:120 | 450 | 2300x800x2500 |
| 5BG-10 | 10 | 3.2 | 1:25-1:120 | 600 | 2230x1040x3080 |
| 5BG-20 | 20 | 4.09 | 1:25-1:120 | 650 | 2250x1100x2980 |
