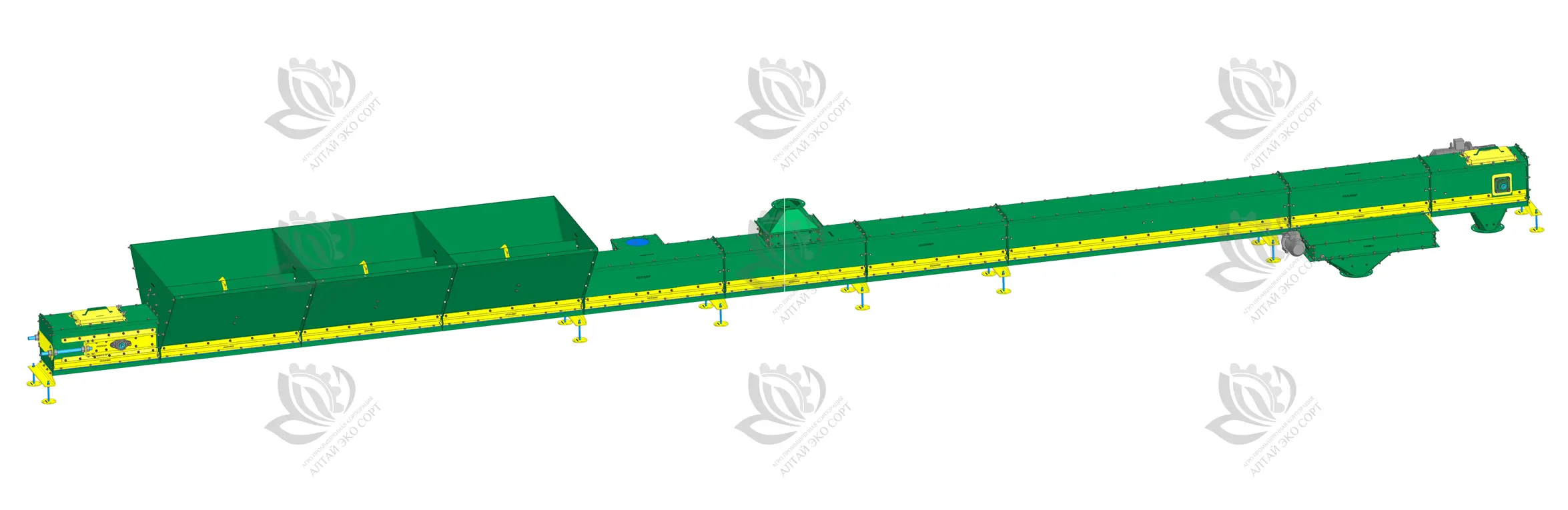

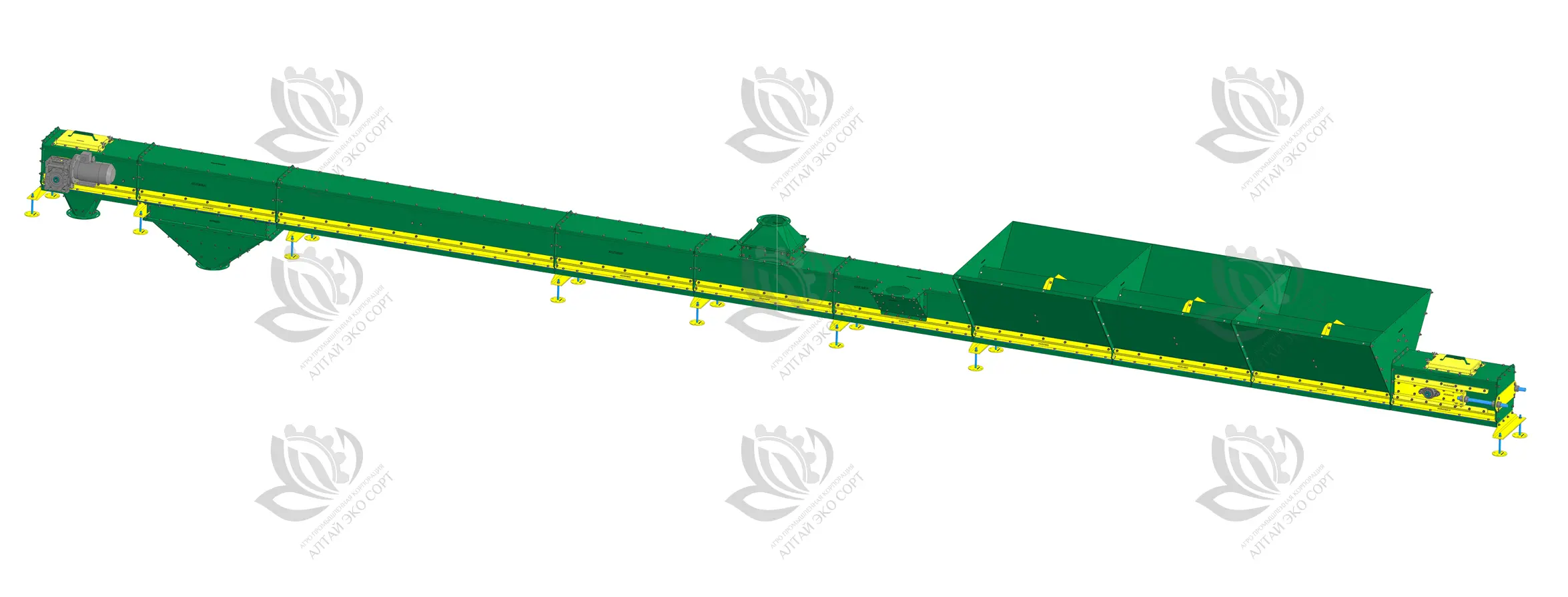

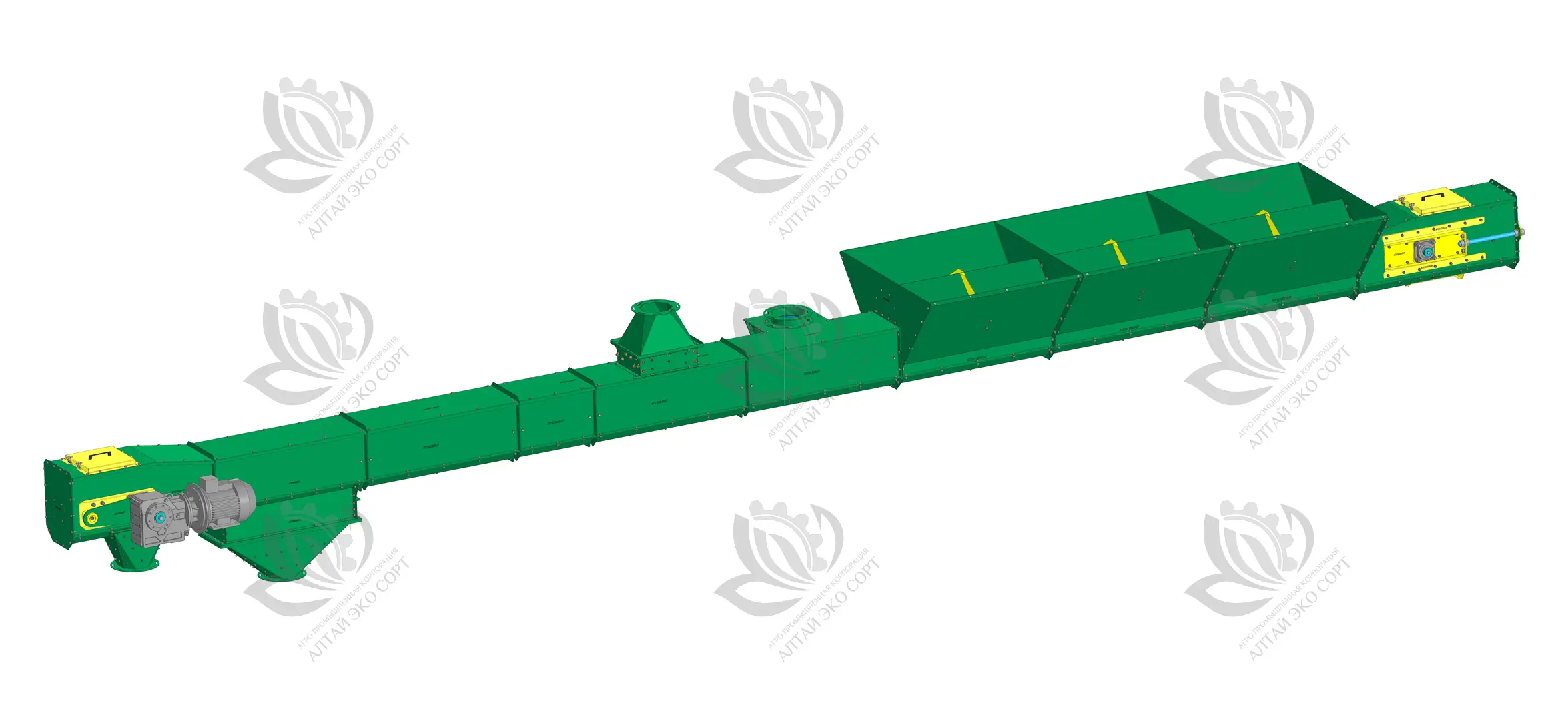

Self-cleaning chain conveyor
Self-cleaning chain conveyors is used for transportation of bulk materials reducing the amount of residual transported product and eliminating its remaining in the inner parts of the conveyor.
Self-cleaning chain conveyor
Description
Chain conveyors is used for horizontal transportation of bulk materials.The design of this conveyor model is self-cleaning, that reduces to a minimum the amount of residual transported product and eliminates its remaining in the inner parts of the conveyor.
- Conveyor parts and scrappers lined with polymer plate, reduces a product damage and increases service life of parts that are, elements affected by the product.
- Conveyor can be equipped with backstop sensor; tail shaft speed control sensor; variable frequency drive.
- Black painted steel
- Galvanized steel
Specification
| Model | КСО-25 | КСО-50 |
|---|---|---|
|
Capacity, t/h (wheat) (at 0.75 t/m3 and 17% humidity) |
25 | 50 |
| Transportation length, m | up to 20 | up to 30 / 60 |
| Chain speed, m/s | 0.75 | 0.66 |
| Chain type | ТРД38 | М112 |
| Thickness, mm | 3 | 3 |
| Power, kW | 2.2 | 5.5 / 7.5 |
Component parts: Drive section; Tension section; Gear motor; Scraper chain; Horizontal section; Slope section (15°, 30°, 45°); Direct feed section; Side feed section; Double-sided feed section; Aspiration section.
