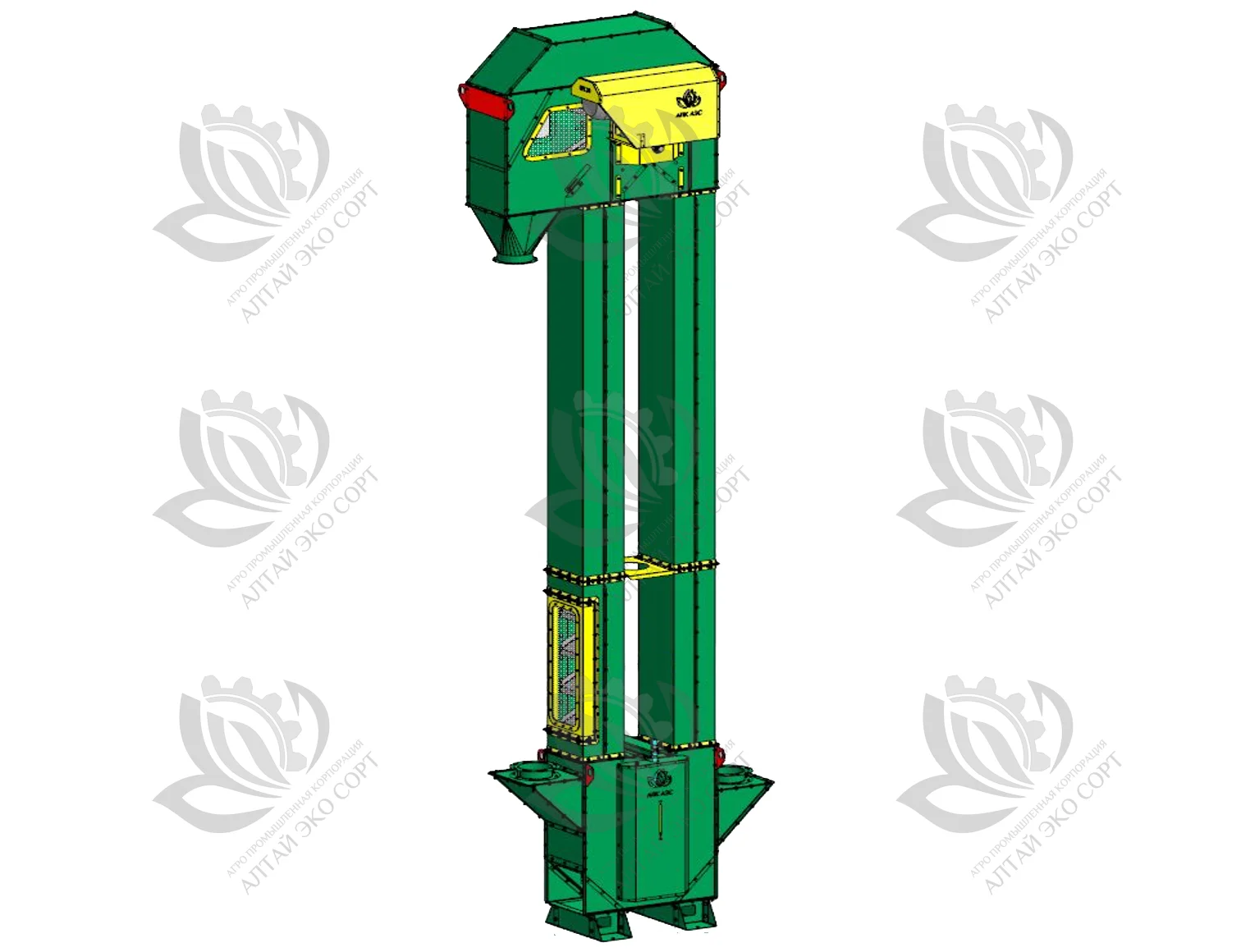

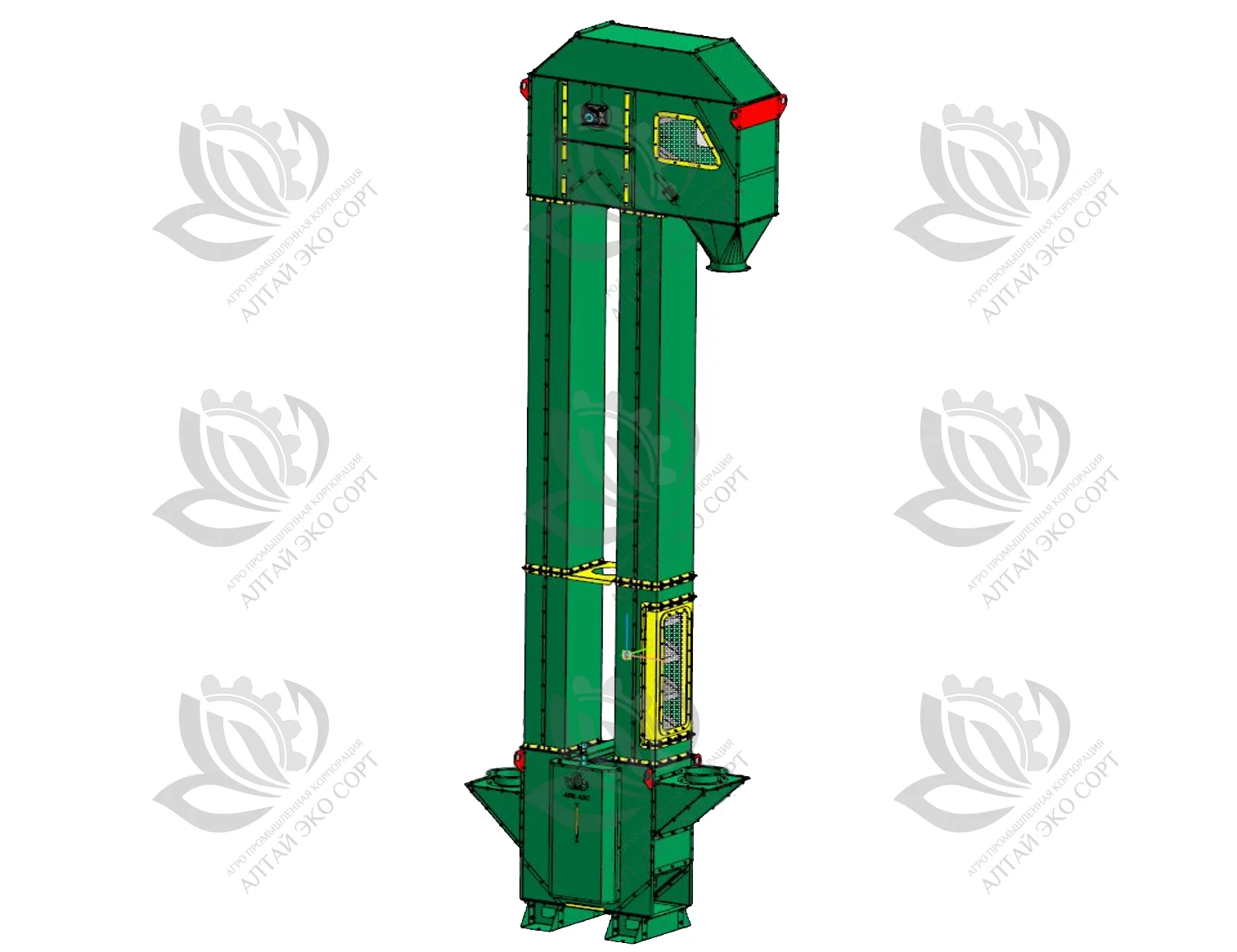

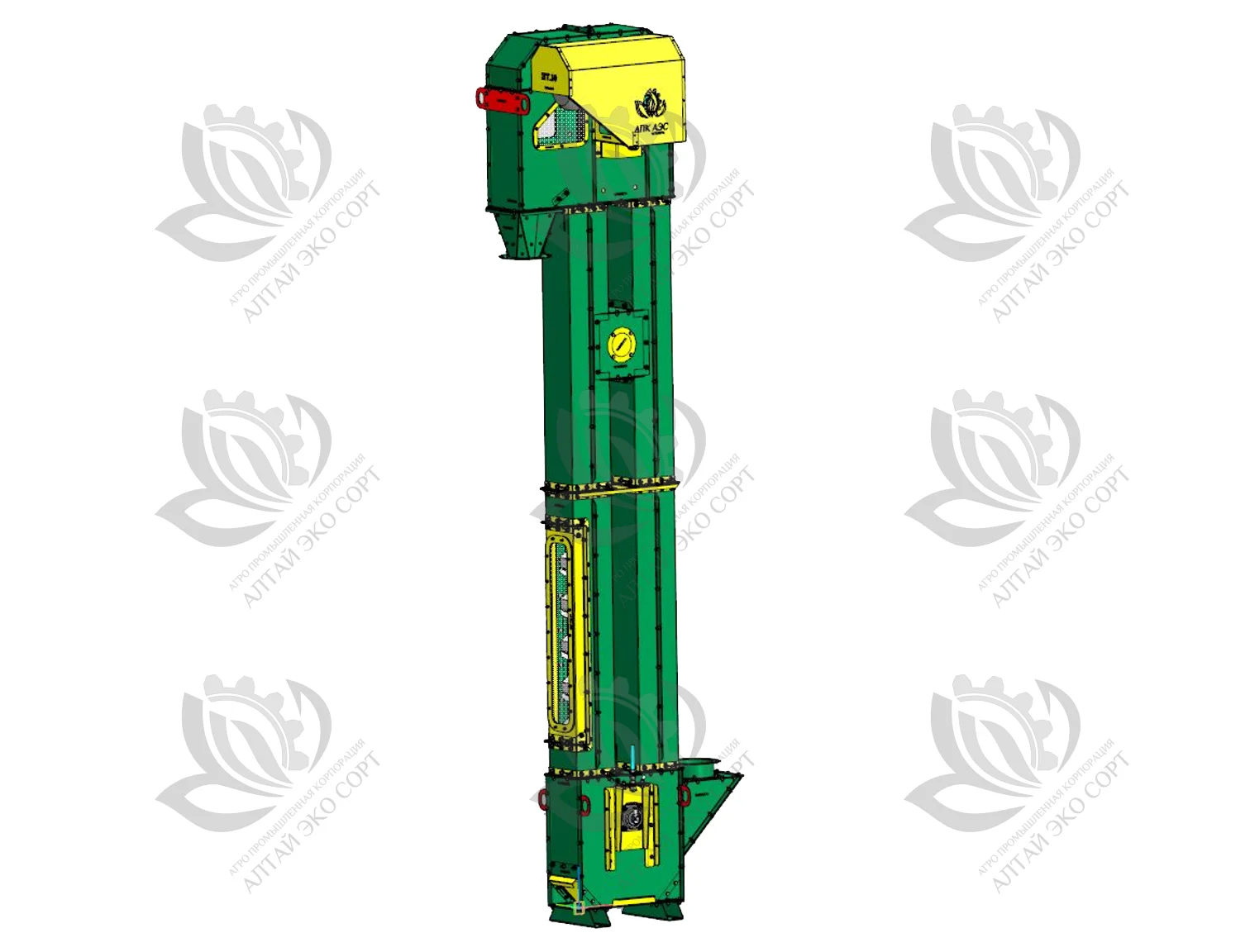

Low-speed Elevator
Low-speed Elevator provide smooth transportation of bulk materials, preventing their breaking.
Details
Characteristics
Capacity
—
10 / 30 t/h
Low-speed Elevator
Description
Bucket elevator is a special unit for vertical transportation of bulk grain products. The buckets are fixed on the vertical conveyor, which, when conveying, lift the grain up and dump it into the intake hopper of another unit or onto the conveyor belt.Low-speed Elevator provide smooth transportation of bulk materials, preventing their breaking.
- Elevator head and inlet hopper lined with polymer plate, which reduces a product damage and increases service life of parts that are, elements affected by the product;
- Bucket elevator can be equipped with belt misalignment sensor; backstop sensor (in elevator boot); belt speed sensor; explosion reliefs; variable frequency drive;
- Black painted steel
- Galvanized steel
Specification
| Model | НT-10 | НТ-30 |
|---|---|---|
|
Capacity, t/h (at 0.75 t/m3 and 17% humidity) |
10 | 30 |
| Transportation height, m | up to 20 | up to 10/20 |
| Belt speed, m/s | 0.6 | 0.7 |
| Belt width, mm | 175 | 315 |
| Buckets spacing, mm | 175 | 250 |
| Buckets size, mm |
Width - 146 Depth - 195 Projection - 133 |
Width - 294 Depth - 195 Projection - 210 |
| Drive drum diameter, mm | 160 | 350 |
| Thickness, mm |
Head - 2 Boot - 2 Shaft - 1.5 |
Head - 1.5 Boot - 2 Shaft - 1.5 |
| Elevator drive | worm gear motor | worm gear motor |
| Power, kW | 2.2 | 2.2 / 4.0 |
Component parts: Elevator head; Gear motor; Outlet; Shaft; Elevator boot; Inlet hopper; Tensioning mechanism; Buckets; Belt; Clean-out door; Inspection hatch.
