Bucket elevator
Bucket elevator is a special unit for vertical transportation of bulk grain products.
Details
Characteristics
Capacity
—
5-175 t/h (wheat)
Bucket elevator
Description

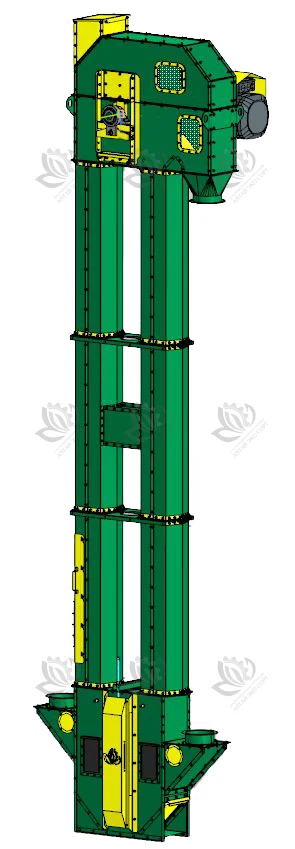

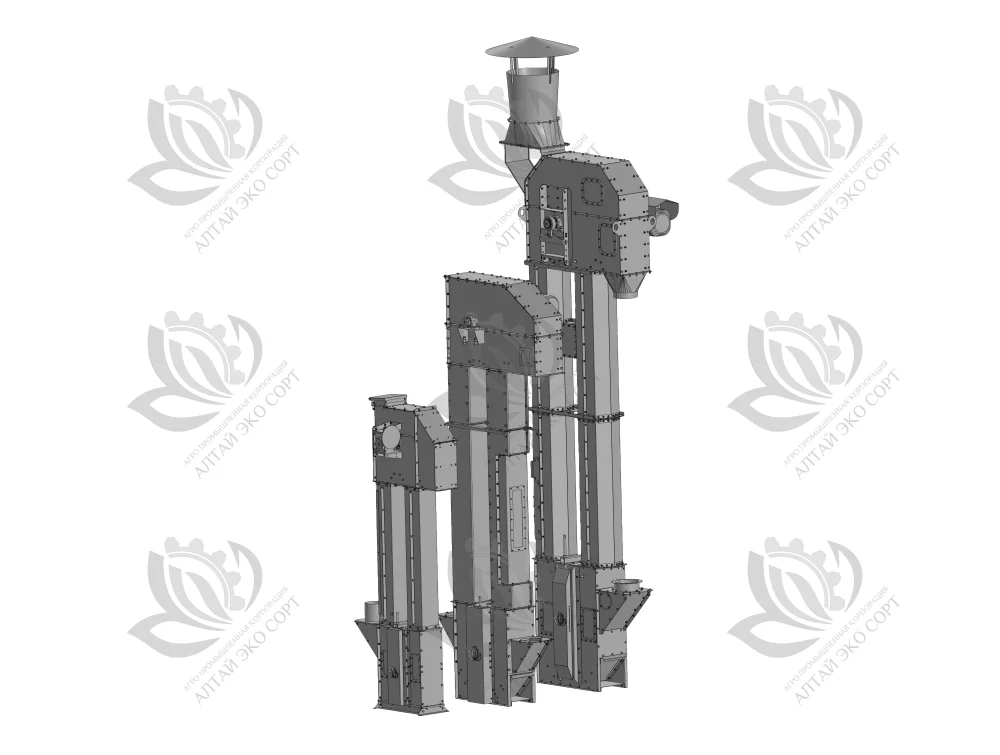

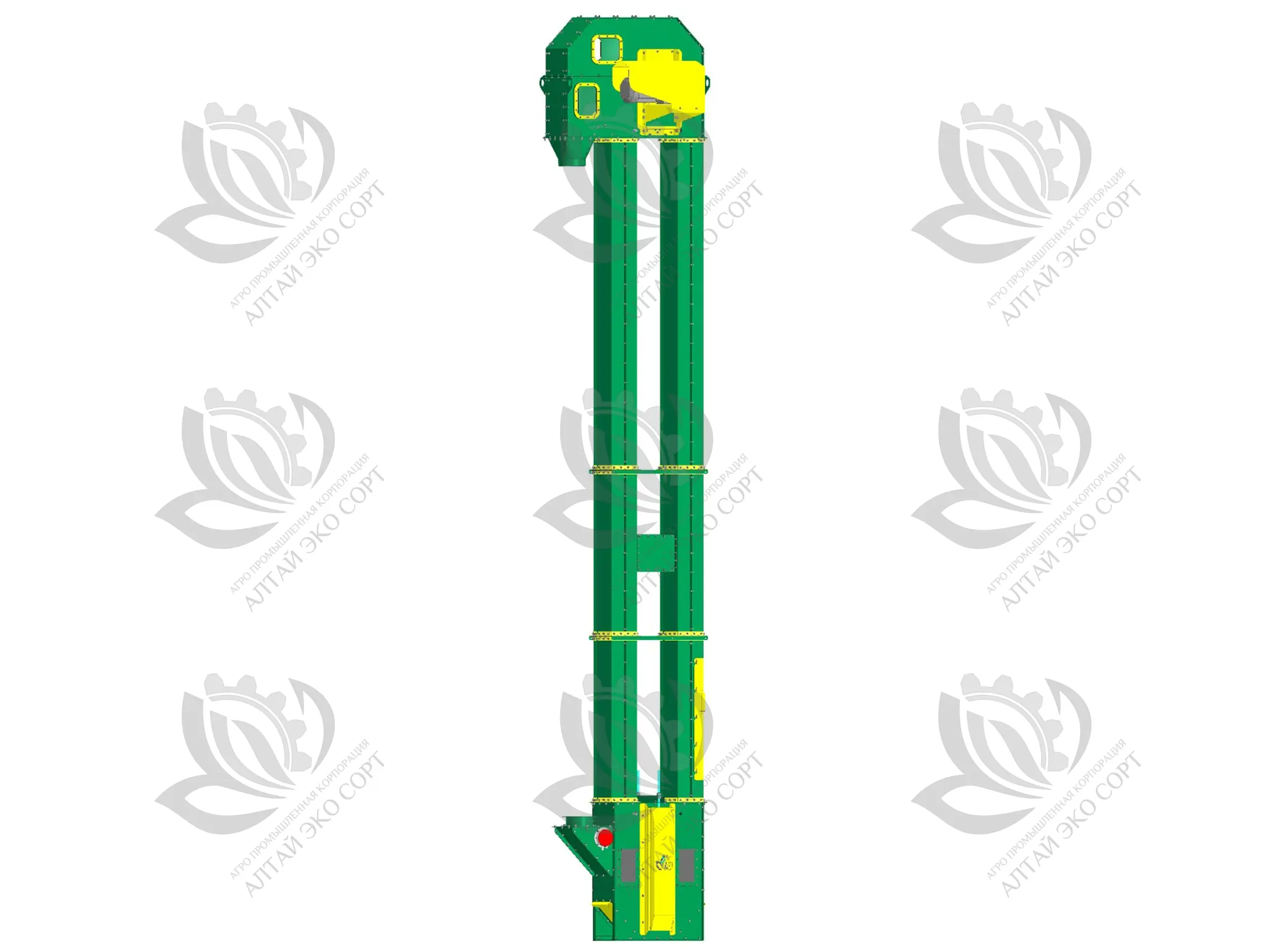

Bucket elevator is a special unit for vertical transportation of bulk grain products. The buckets are fixed on the vertical conveyor, which, when conveying, lift the grain up and dump it into the intake hopper of another unit or onto the conveyor belt.Our company manufactures bucket elevators 5-100 t/h for wheat.
Transportation height - up to 60 m.
- Elevator head and inlet hopper lined with polymer plate, which reduces a product damage and increases service life of parts that are, elements affected by the product;
- Bucket elevator can be equipped with belt misalignment sensor; backstop sensor (in elevator boot); belt speed sensor; explosion reliefs; variable frequency drive;
- Black painted steel
- Galvanized steel
Specification
| Model | НКЛ-10 | НКЛ-15 | НКЛ-30 | НКЛ-50 | НКЛ-100 |
|---|---|---|---|---|---|
|
Capacity, t/h (at 0.75 t/m3 and 17% humidity) |
10 | 15 | 30 | 50 | 100 |
| Transportation height, m | up to 10 / 20 | up to 25 | up to 25 | up to 40 | up to 60 |
| Belt speed, m/s | 1.95 | 2.6 | 2.6 | 2.2 | 2.8 |
| Belt width, mm | 100 | 180 | 180 | 220 | 315 |
| Buckets spacing, mm | 140 | 460 | 230 | 200 | 210 |
| Buckets size, mm |
Width - 105 Depth - 70 Projection - 85 |
Width - 165 Depth - 95 Projection - 135 |
Width - 165 Depth - 95 Projection - 135 |
Width - 215 Depth - 110 Projection - 155 |
Width - 260 Depth - 127 Projection - 161 |
| Drive drum diameter, mm | 200 | 400 | 400 | 400 | 740 |
| Thickness, mm |
Head - 2 Boot - 2 Shaft - 1.5 |
Head - 3 Boot - 3 Shaft - 2 |
Head - 3 Boot - 3 Shaft - 2 |
Head - 3 Boot - 3 Shaft - 2 |
Head - 3 Boot - 3 Shaft - 2 |
| Elevator drive | worm gear motor | worm gear motor | worm gear motor | bevel gear motor | bevel gear motor |
| Power, kW | 1.1 / 1.5 | 2.2 | 2.2 | up to 11 | up to 30 |
Component parts: Elevator head; Gear motor; Outlet; Shaft; Elevator boot; Inlet hopper; Tensioning mechanism; Buckets; Belt; Clean-out door; Inspection hatch.
