5XZ-6Y Gravity Separator
This Blow Type Specific Gravity Cleaning Machine is to produce proportion segregation phenomenon under stress of aerodynamic and vibration friction of graininess material.
Details
Characteristics
Capacity
—
5 t/h
Power
—
13.2 kW
Weight
—
1550 kg
Overall size
—
3870x1720x1700 mm
5XZ-6Y Gravity Separator
Description
This Blow Type Specific Gravity Cleaning Machine is to produce proportion segregation phenomenon under stress of aerodynamic and vibration friction of graininess material.
Features

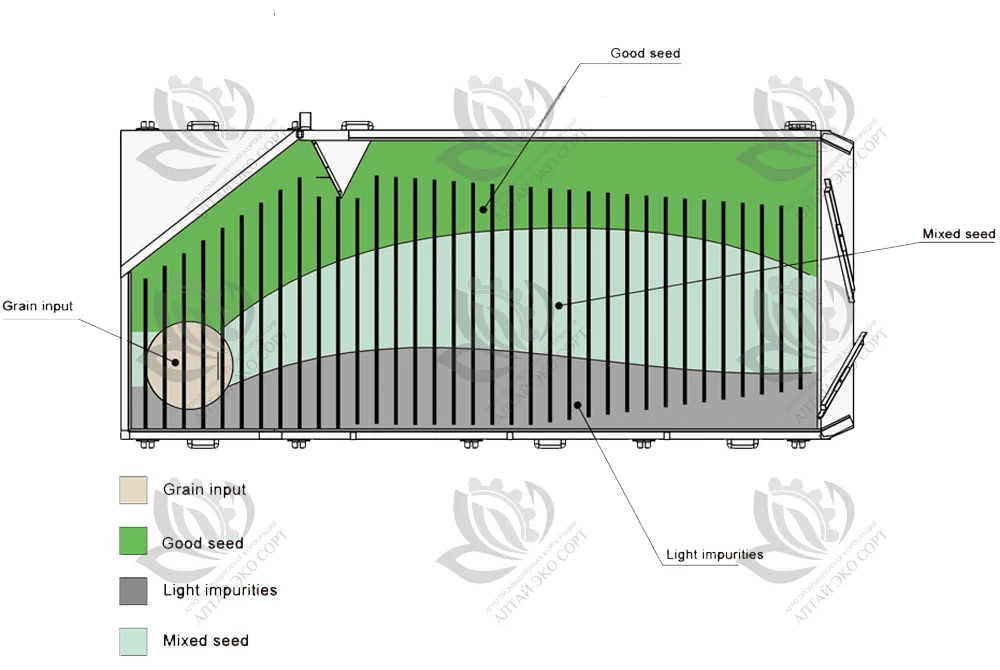

- By adjusting wind pressure, amplitude and other parameters, larger and smaller proportion material will be separated;
- This machine is to remove blighted seed, budding seed, damaged seed (by insect), and other light impurities from wheat, corn, paddy, sunflower seed, melon seed, legume, etc.;
- At the same time, there is an angle on the right of vibration surface; the stone can be separated.
Specification
| Model |
Sieve size, mm |
Power, kW |
Capacity, t/h |
Voltage, V |
Current frequency, Hz |
Weight, kg |
Overall size, mm |
|---|---|---|---|---|---|---|---|
| 5XZ-6Y | 1380х3150 | 13.2 | 5 |
380 |
50 |
1550 | 3870х1720х1700 |
