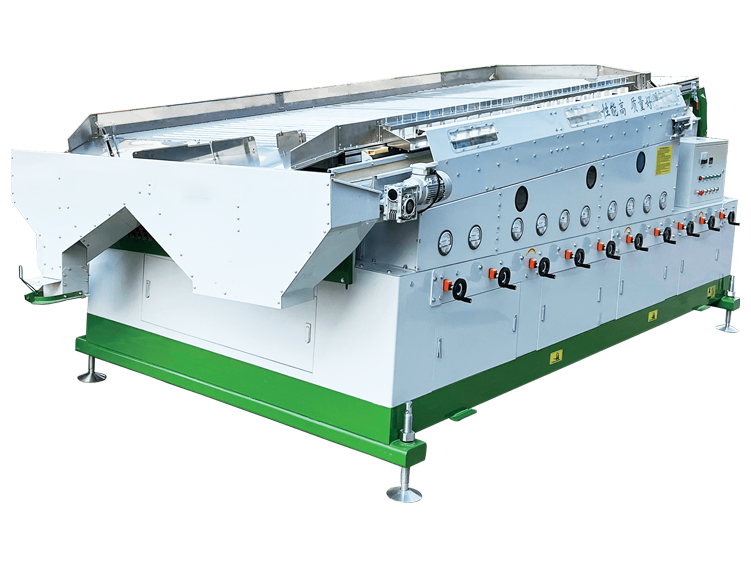

5XZ-15Y Gravity Separator
This Blow Type Specific Gravity Cleaning Machine is to produce proportion segregation phenomenon under stress of aerodynamic and vibration friction of graininess material.
Details
Characteristics
Capacity
—
10-15 t/h
Power
—
24.95 kW
Sieve size
—
4410x1750 mm
Weight
—
3500 kg
Overall size
—
5235x2380x1900 mm
5XZ-15Y Gravity Separator
Description
This Blow Type Specific Gravity Cleaning Machine is to produce proportion segregation phenomenon under stress of aerodynamic and vibration friction of graininess material.
Features
- By adjusting wind pressure, amplitude and other parameters, larger and smaller proportion material will be separated;
- This machine is to remove blighted seed, budding seed, damaged seed (by insect), and other light impurities from wheat, corn, paddy, sunflower seed, melon seed, legume, etc.;
- At the same time, there is an angle on the right of vibration surface; the stone can be separated.
Specification
| Model |
Sieve size, mm |
Power, kW |
Capacity, t/h |
Weight, kg |
Overall size, mm |
|---|---|---|---|---|---|
| 5XZ-15Y | 4410x1750 | 24.95 | 10-15 | 3500 | 5235x2380x1900 |
