5CX-5II Magnetic Separator

Description

5CX series high-performance magnetic election graders is to separate clods from grain.

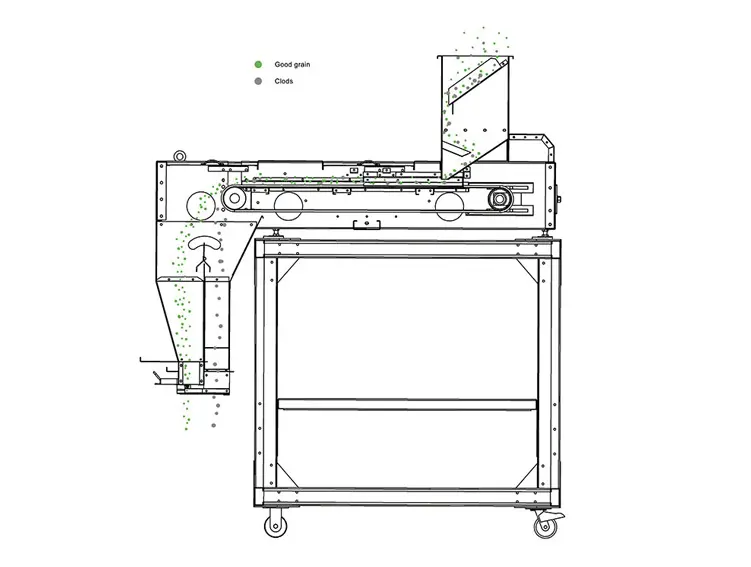

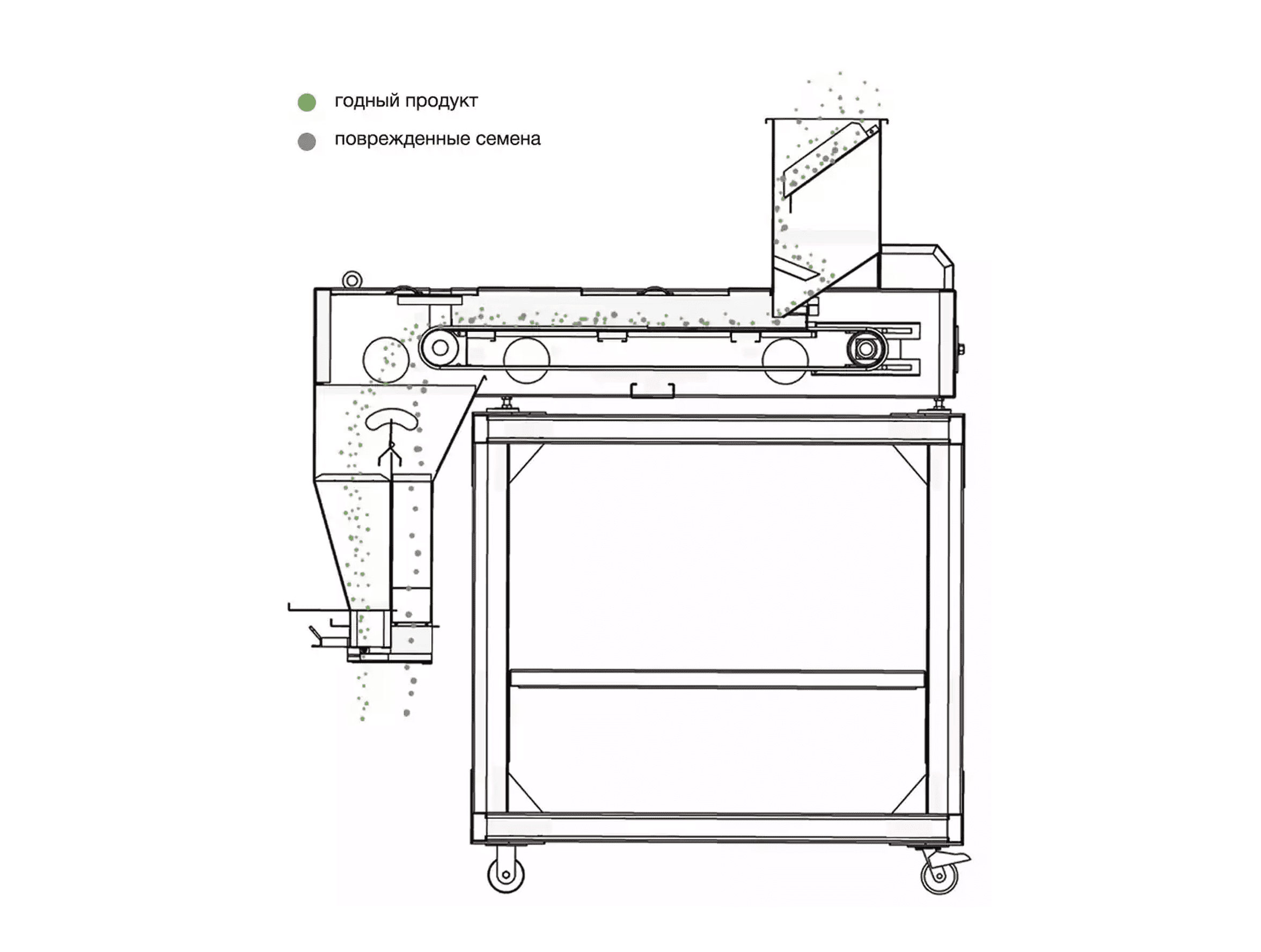

When materials are put in a closed strong magnetic field, they will form a stable parabolic movement. Due to the different strength of attraction of the magnetic field, clods and grains will be separated.

Features

• 304 stainless steel sheet metal machine with strict magnetic closure and less magnetic flux leakage;
• The magnetic field strength of magnetic roller is more than 17,000 gauss with good magnetic effect;
• Wide magnetic surface of 1300mm, which ensures the processing capacity and improves the magnetic effect;
• This machine adopts original design of bulk grain equipment with uniform bulk grain and no maintenance, which greatly reduces the losses caused by the vibration feeder damage;
• It is equipped with the most advanced transducer;
• According to different types of materials, it’s very convenient to adjust to optimum operation speed.

Specification
