QSC-10Y De-stoner
QSC-type blowing style De-stoner is to separate stone, clods by adjusting wind pressure, amplitude and other parameters.
Details
Characteristics
Capacity
—
10 t/h
Power
—
8.6 kW
Weight
—
1270 kg
Overall size
—
2300×2290×1550 mm
QSC-10Y De-stoner
Description

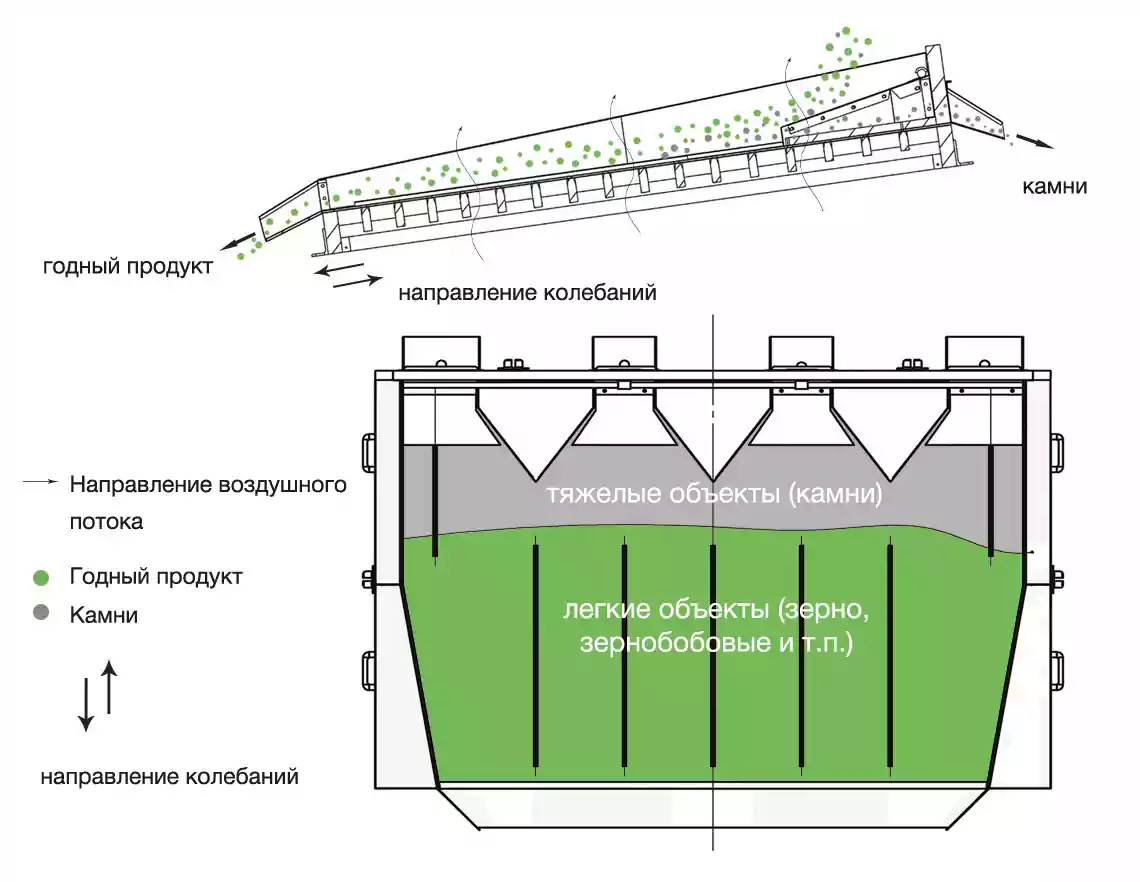

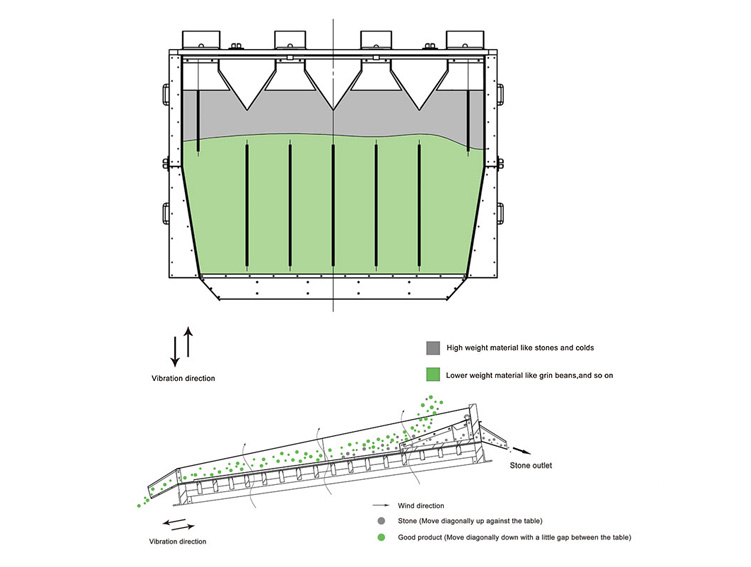

QSC-type blowing style De-stoner is to separate stone, clods by adjusting wind pressure, amplitude and other parameters.Larger proportion material stone will sink down and move bottom to up under the stress of vibration friction; while smaller proportion material moves up to bottom.
Features
- This machine is equipped with internal fans, and fans and vibration system both have their own motors.
- Vibration system’s motor has a transducer, which uses different frequencies for different sizes of materials.
Specification
| Model |
Sieve size, mm |
Power, kW |
Capacity, t/h |
Voltage, V |
Current frequency, Hz |
Weight, kg |
Overall size, mm |
|---|---|---|---|---|---|---|---|
| QSC-10Y | 2200х1530 | 8.6 | 10 |
380 |
50 |
1270 |
2300х2290х1550 |
