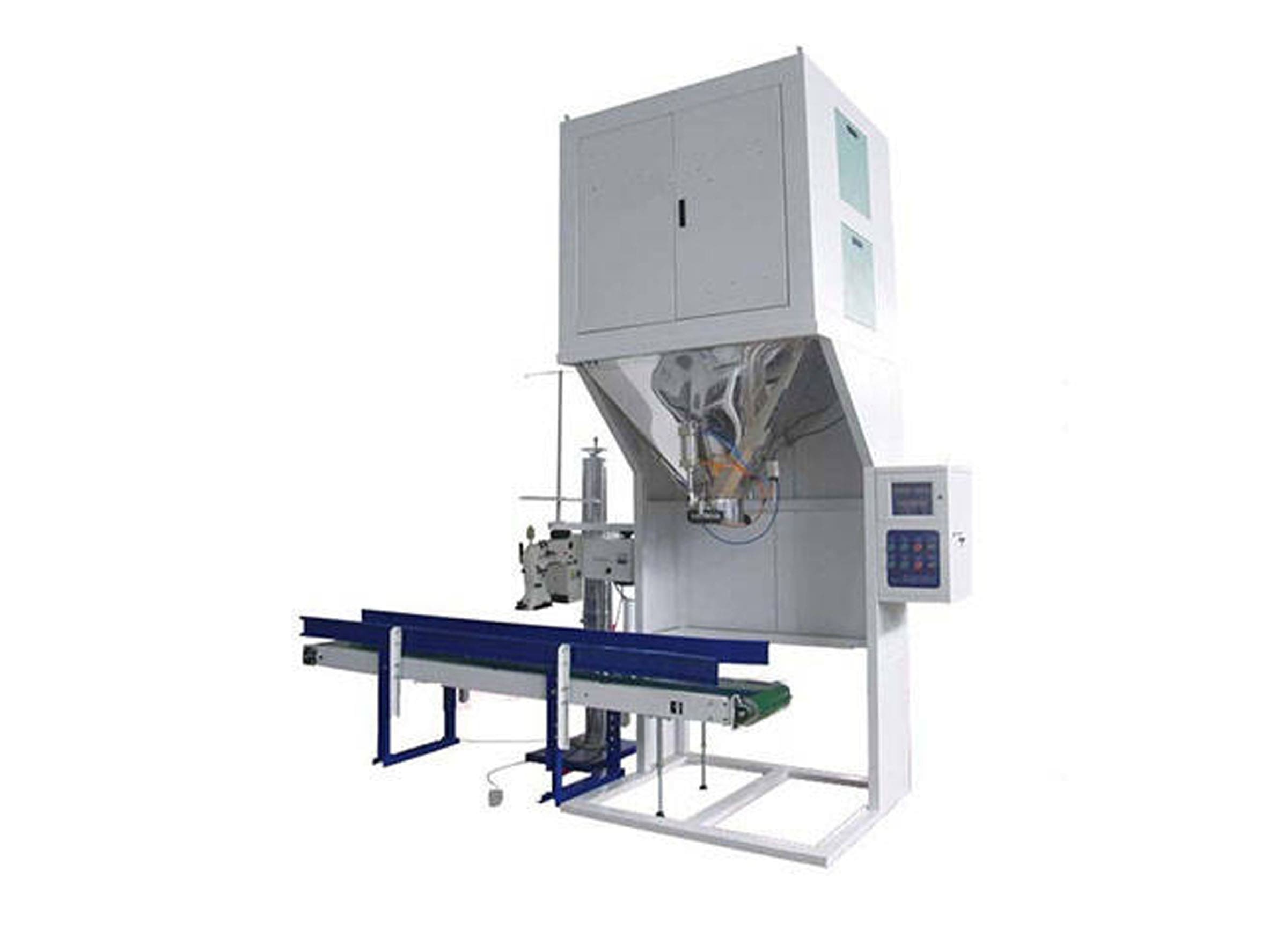

DLB model Weight and Packing Machine
DLB model Weight and Packing Machine consists of automatic weighing device, conveyer, sealing device and computer controller.
DLB model Weight and Packing Machine
Features
- Hanging weighing sensor, steady signal transmission and precise weighing;
- Fast speed, high anti-jamming ability, stability, and automatic error repairing;
- It has infrared transducer and speedy pneumatic device for fast reaction;
- It also adopts Touching LCD display for easy operation;
- Main machine, conveyer, sealing device are controlled by computer;
- Wide packing scope, high compatibility;
- It can store the shift capacity, day capacity and total packaging quantities automatically and accurately.
Specification
Single scale| Model |
Power, kW |
Capacity, bags/h |
Packing scope, kg/bag |
Error rate |
Overall size, mm |
|---|---|---|---|---|---|
| DLB-5D | 0.74 |
≥500 |
1-5 | 0.1% | 2500х1500х2500 |
| DLB-25A | 0.74 |
≥420 |
2.5-25 | 0.1% | 2890х1500х3000 |
| DLB-50A | 0.74 |
≥300 |
5-50 | 0.1% | 3000х1500х3210 |
| DLB-100A | 0.74 |
≥300 |
10-100 | 0.1% | 3000х900х3550 |
Double scale
| Model |
Power, kW |
Capacity, bags/h |
Packing scope, kg/bag |
Error rate |
Overall size, mm |
|---|---|---|---|---|---|
| DLB-25S | 0.74 |
≥400 |
5-50 | 0.1% | 3000х1500х3000 |
| DLB-80S | 0.74 |
≥300 |
10-100 | 0.1% | 3000х1500х3610 |
| DLB-100S | 0.74 |
≥500 |
20-100 | 0.1% | 3000х1000х3895 |
Electronic
| Model |
Power, kW |
Capacity, bags/h |
Packing scope, kg/bag |
Error rate |
Overall size, mm |
|---|---|---|---|---|---|

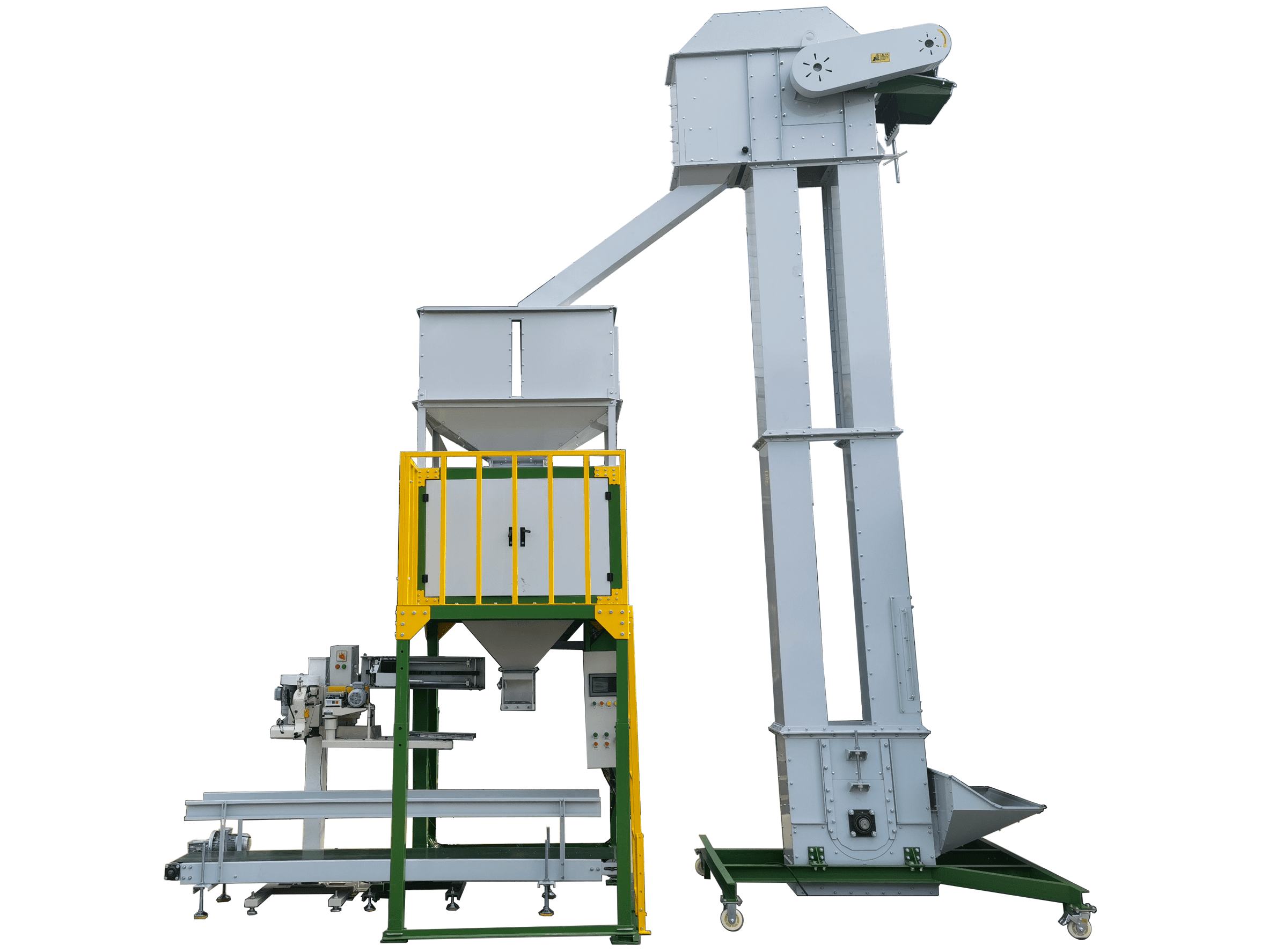

| DLB-100SD | 1.4 |
≥400 |
10-60 | 0.2% | 1500х1640х4066 |
