Sunflower Seed Shelling Processing Line
This product is a sunflower seed de-hulling and sorting production line equipment, which has the functions of de-hulling, grading, air separation, seed kernel separation and so on.
Details
Characteristics
Capacity
—
1.5 t/h
Power
—
16.77 kW
Weight
—
6490 kg
Overall size
—
12423х3729х5898 mm
Voltage
—
380V/50Hz
Sunflower Seed Shelling Processing Line
Description
This product is a sunflower seed de-hulling and sorting production line equipment, which has the functions of de-hulling, grading, air separation, seed kernel separation and so on. It can remove small impurities in the material after shelling, light impurities in the skin, and separate the seed kernels. Suitable for production enterprises that need to shell and separate sunflower seeds. The production line is equipped with a grading sieve, and the seed and the kernel can be roughly separated after the shelling is completed, thereby reducing the screening burden of the seed kernel separating sieve and improving the separation speed and effect of the seed kernel.The device has the characteristics of low energy consumption, compact structure, small occupied space, low loss of seed kernel, simple operation and maintenance, good separation effect of kernels and the like. It is suitable for roasting and oil extraction enterprises that need to remove and separate sunflower seeds worldwide.

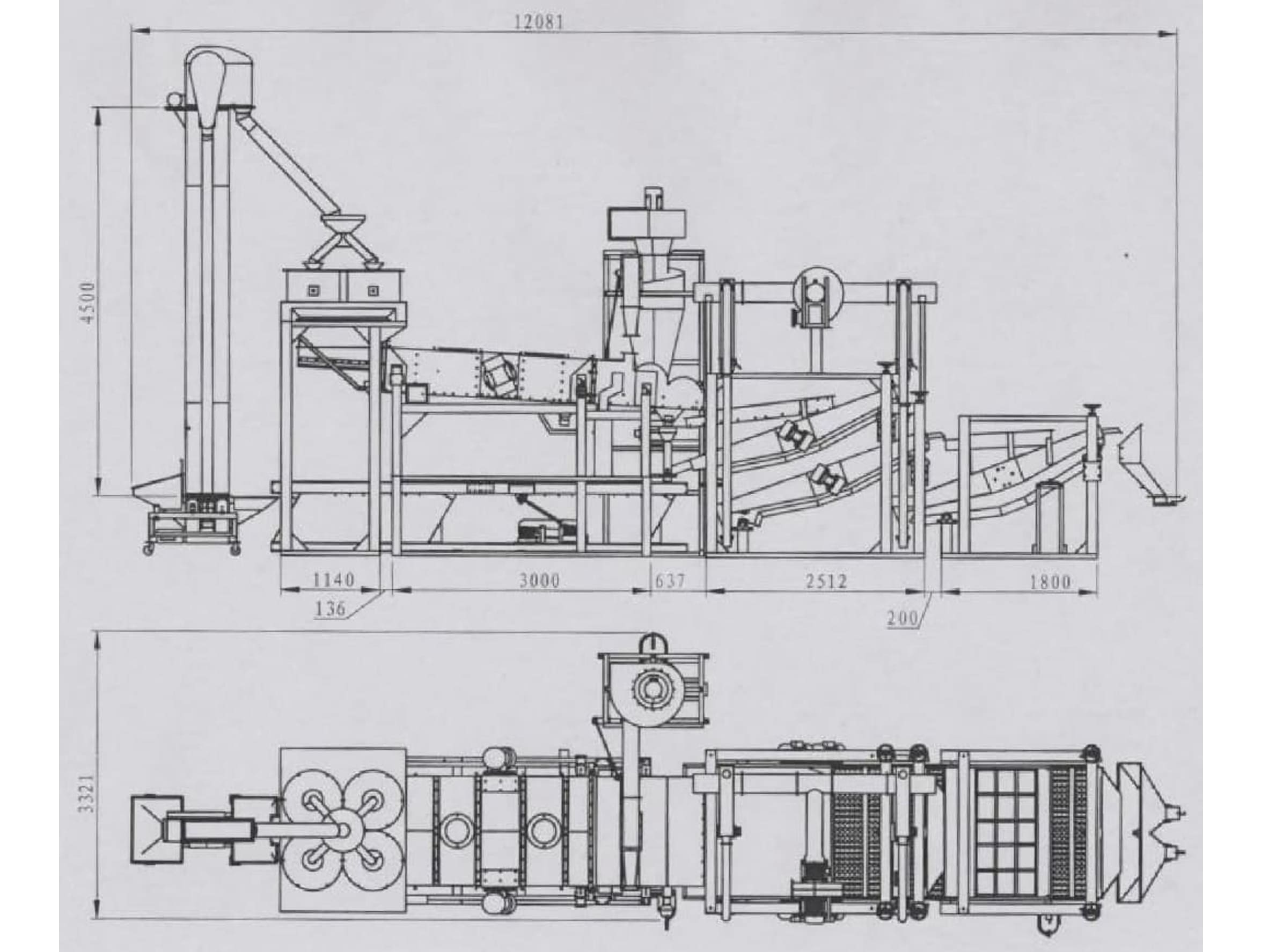

The plant including the de-hulling part, grading part, dust collecting part, gravity separator table etc.
