Heatless Adsorption Dryer
Adsorption dryers remove remaining humidity contained in compressed air.
Details
Heatless Adsorption Dryer
Description

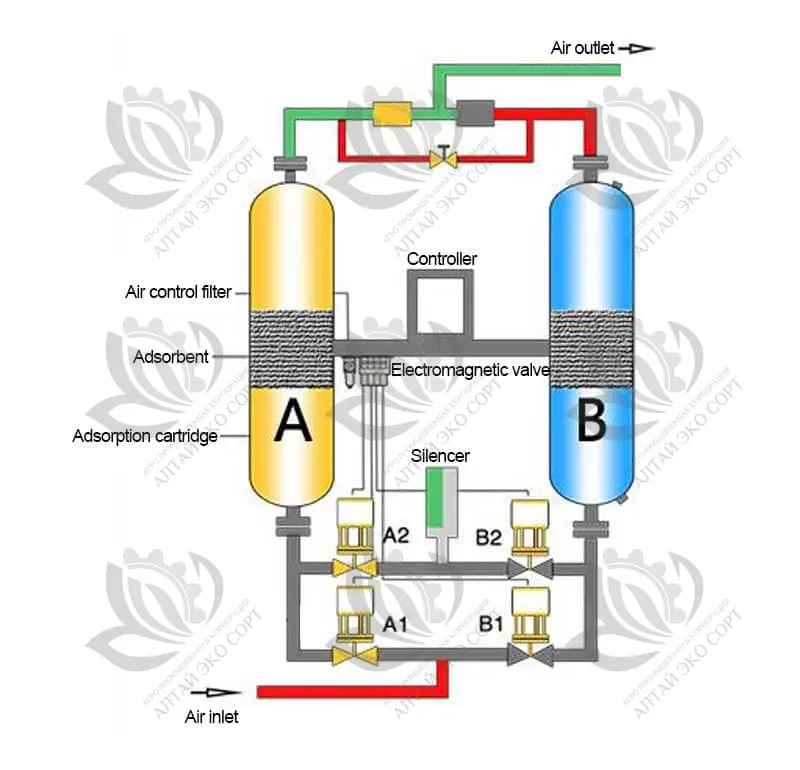

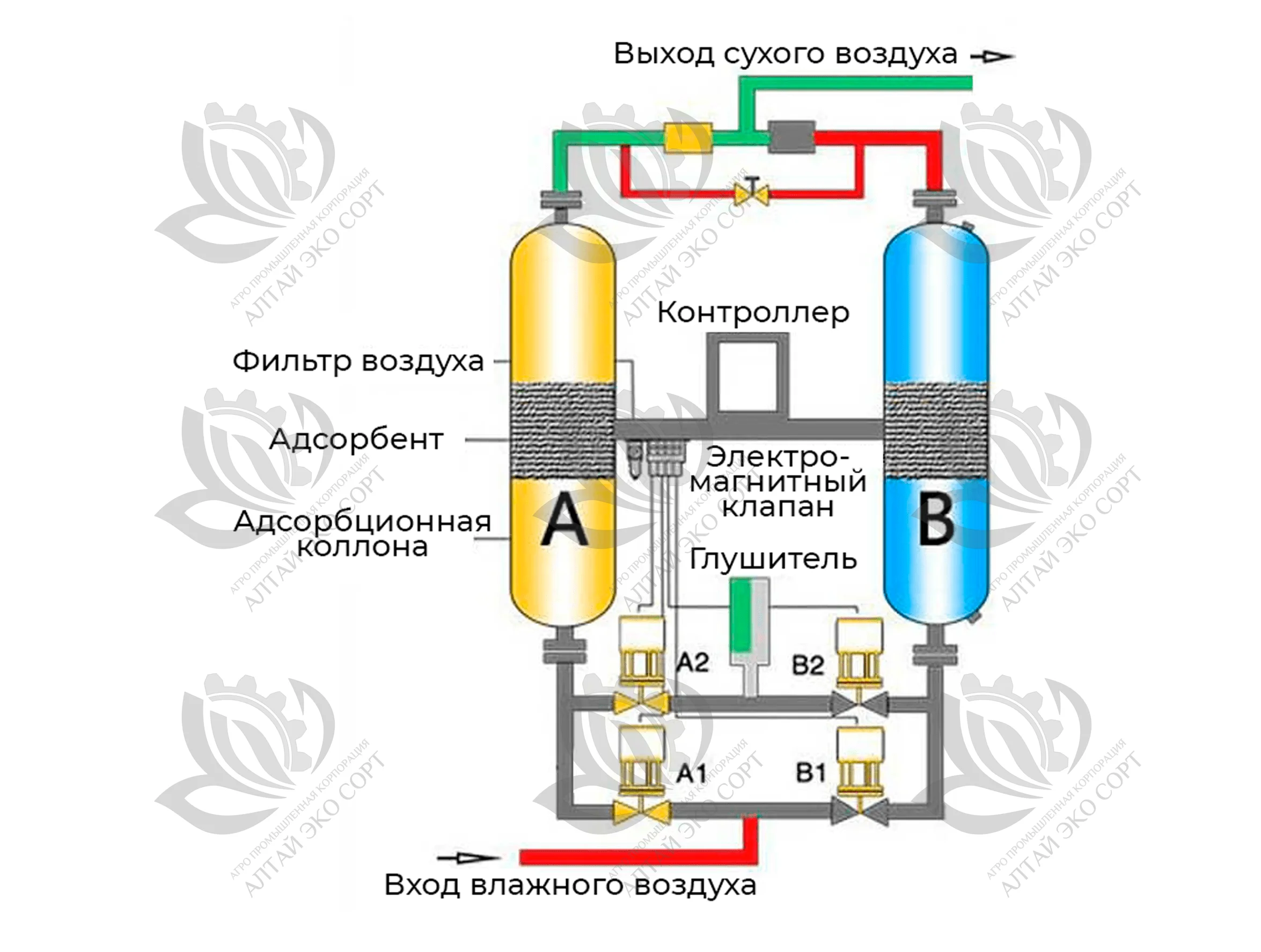

The heatless regeneration dryer uses the pressure swing adsorption principle of the adsorbent to carry out adsorption under high water vapor partial pressure and regenerate under low water vapor partial pressure. The regeneration barrel uses part of the product gas at the outlet, and the partial pressure of water vapor is further reduced after the product gas is decompressed and expanded, and this part of the gas is used to dehydrate and regenerate the regeneration barrel.Advantages
- Standard frame, prefabricated forklift holes and lifting rings, convenient for handling and hoisting operations;
- High-performance butterfly valve, stainless steel valve plate, high-efficiency pneumatic actuator to ensure longer service life;
- PLC control text display, sensor monitoring, equipment operation visualization, stable and reliable;
- Remote monitoring and remote dry contact control; - Stainless steel air flow distributor to ensure uniform airflow, reliable and durable.
Specification
| Model |
Capacity, m3/min |
Voltage, V/Hz |
Power, kW |
Pipe diameter of air joint |
Overall size, mm |
|---|---|---|---|---|---|
| SLT-1.5HL | 1.5 | 220/50 | 0.2 | G3/4" | 680x400x1400 |
| SLT-2.5HL | 2.5 | 220/50 | 0.2 | G3/4" | 800x400x1700 |
| SLT-3.8HL | 3.8 | 220/50 | 0.2 | G1" | 860x500x1750 |
| SLT-6.8HL | 6.8 | 220/50 | 0.2 | G1 1/2" | 990x550x1830 |
| SLT-8.5HL | 8.5 | 220/50 | 0.2 | G2" | 1080x600x1600 |
| SLT-12HL | 12 | 220/50 | 0.2 | G2" | 1080x600x1880 |
| SLT-16HL | 16 | 220/50 | 0.2 | G2" | 1200x650x2000 |
| SLT-22HL | 22 | 220/50 | 0.2 | DN65 | 1350x680x2100 |
| SLT-27HL | 27 | 220/50 | 0.2 | DN80 | 1450x700x2400 |
| SLT-32HL | 32 | 220/50 | 0.2 | DN80 | 1550x750x2400 |
| SLT-38HL | 38 | 220/50 | 0.2 | DN100 | 1700x800x2400 |
| SLT-45HL | 45 | 220/50 | 0.2 | DN100 | 1800x800x2500 |
| SLT-55HL | 55 | 220/50 | 0.2 | DN125 | 1900x850x2550 |
| SLT-65HL | 65 | 220/50 | 0.2 | DN125 | 2100x900x2650 |
| SLT-85HL | 85 | 220/50 | 0.2 | DN125 | 2300x1000x2800 |
| SLT-110HL | 110 | 220/50 | 0.2 | DN150 | 2400x1100x2900 |
| SLT-135HL | 135 | 220/50 | 0.2 | DN150 | 2550x1200x3000 |
| SLT-160HL | 160 | 220/50 | 0.2 | DN200 | 2650x1350x3050 |
| SLT-200HL | 200 | 220/50 | 0.2 | DN200 | 2800x1450x3050 |
| SLT-250HL | 250 | 220/50 | 0.2 | DN200 | |
| SLT-300HL | 300 | 220/50 | 0.2 | DN250 | |
| SLT-350HL | 350 | 220/50 | 0.2 | DN250 | |
| SLT-400HL | 400 | 220/50 | 0.2 | DN300 | |
| SLT-500HL | 500 | 220/50 | 0.2 | DN350 |
