Diaphragm Compressor
A diaphragm air compressor is a special type of reciprocating air compressor that uses a diaphragm to compress the air.
Diaphragm Compressor
Description

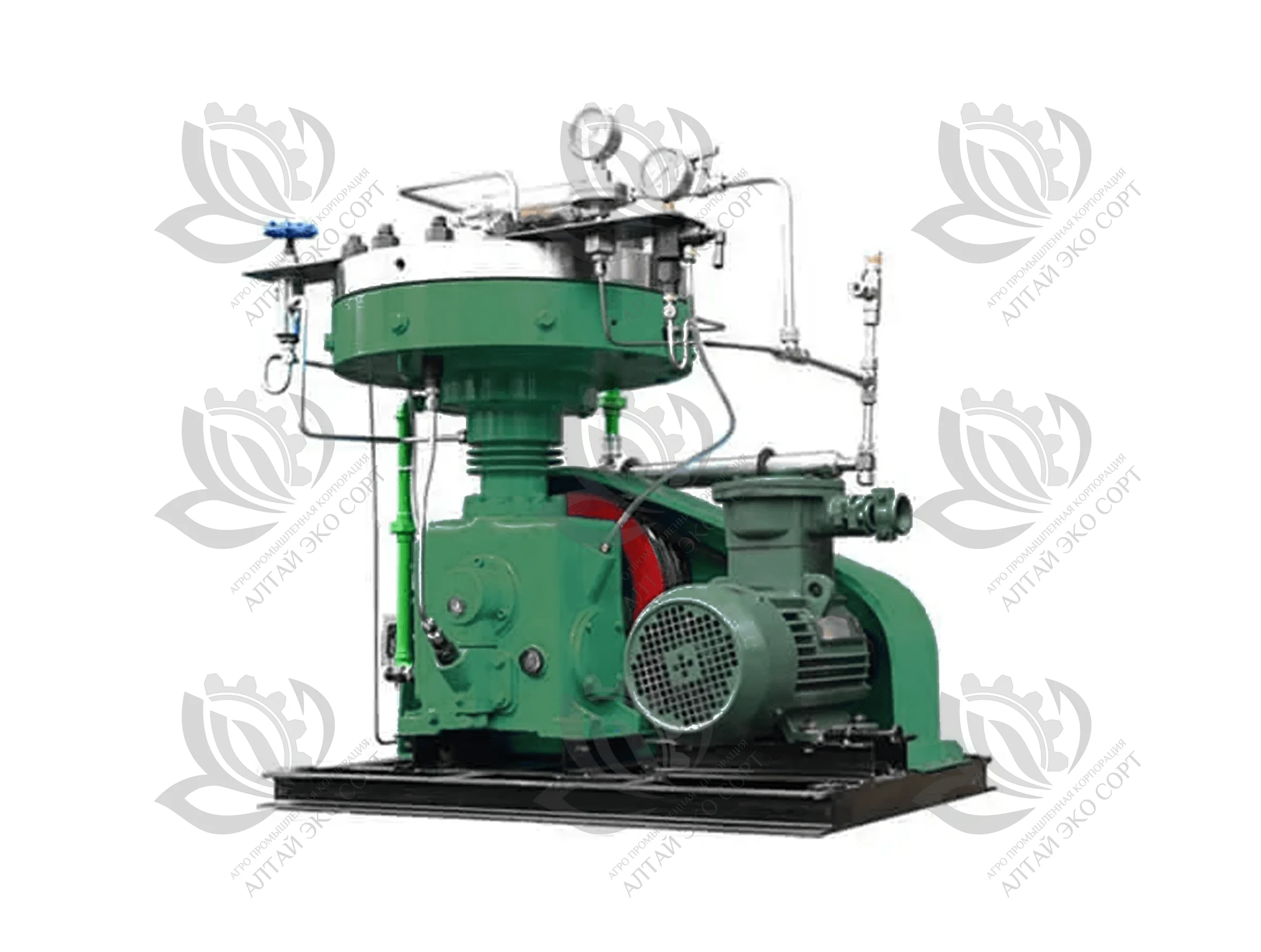

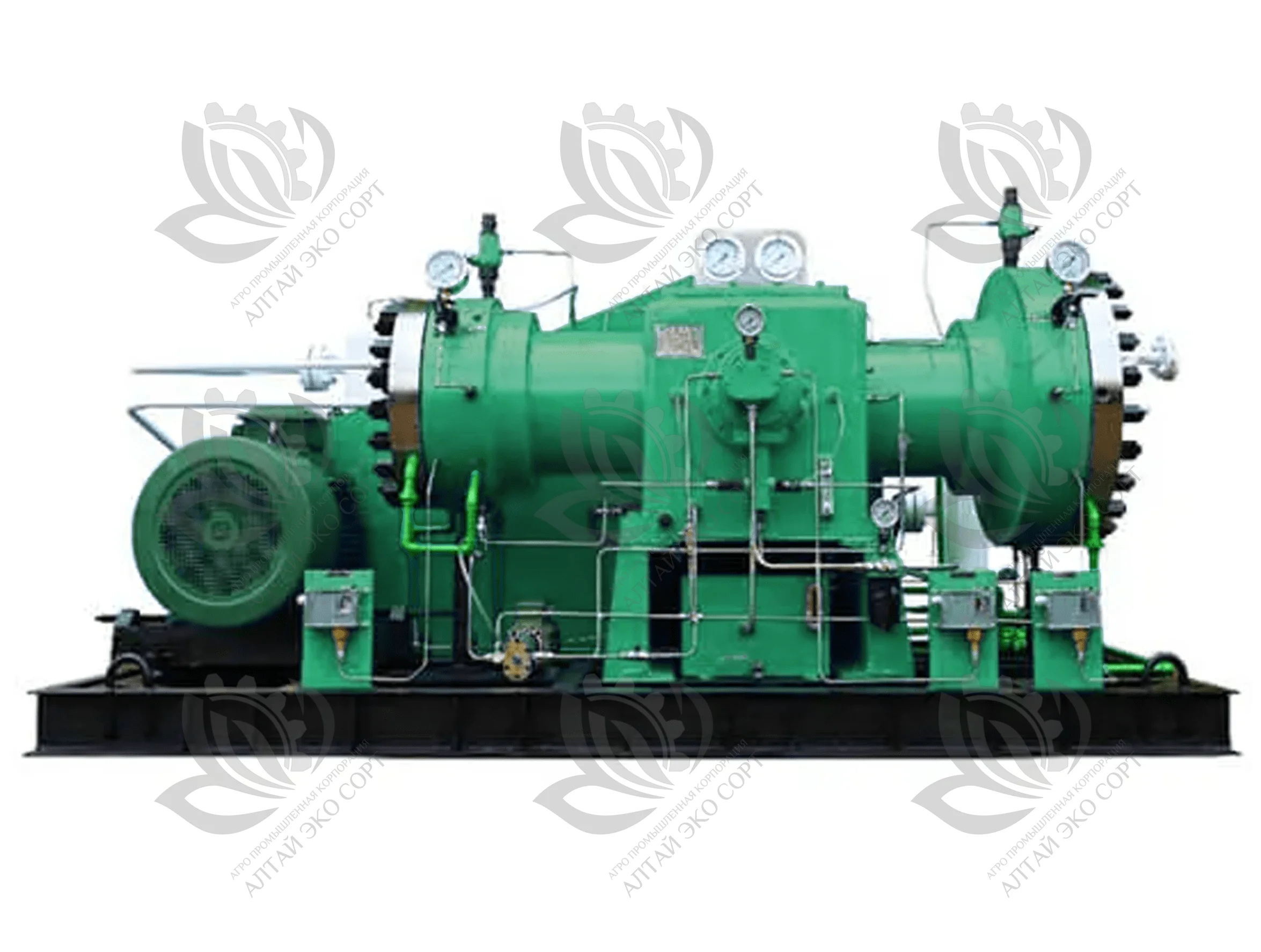

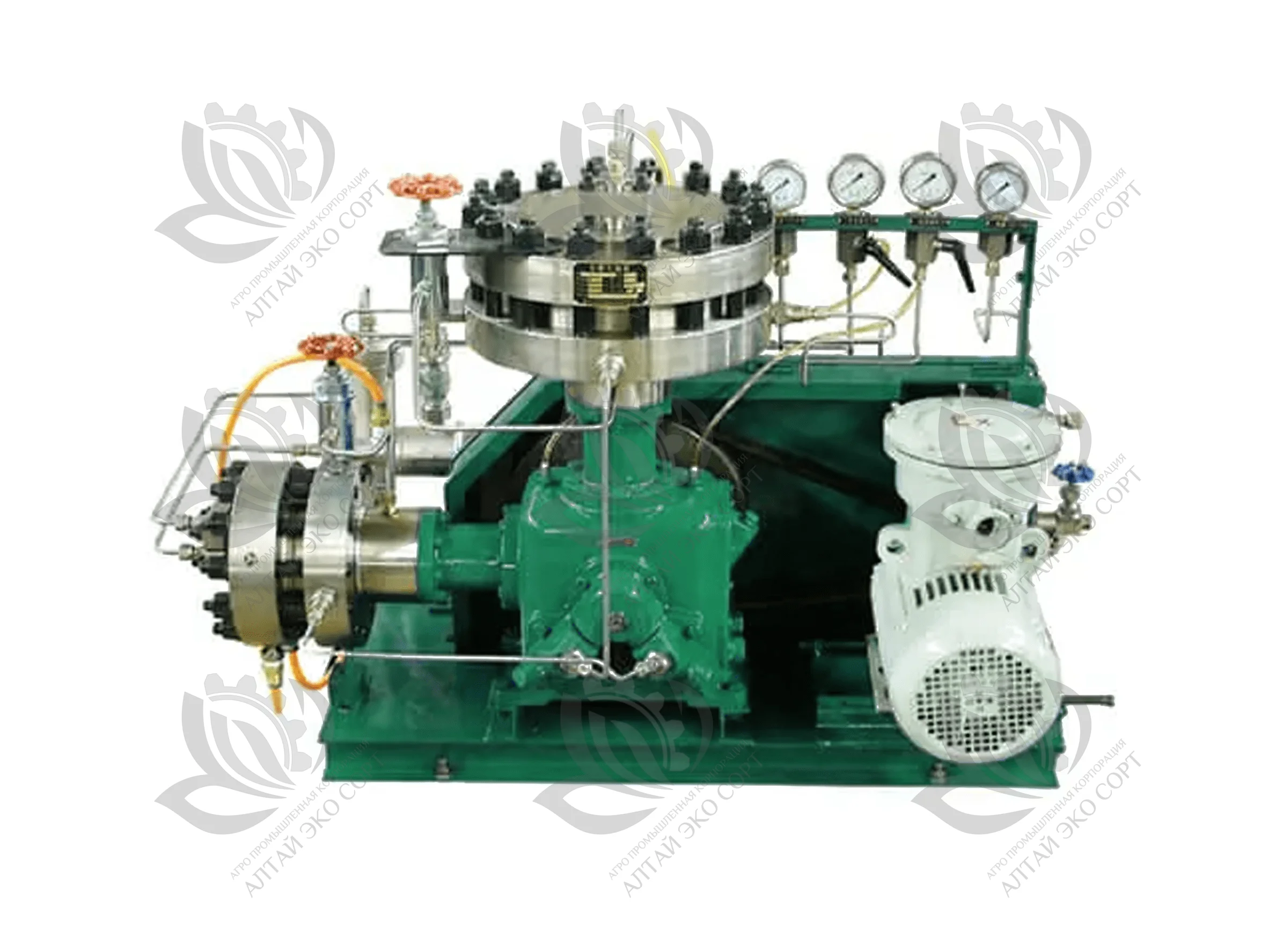

A diaphragm air compressor is a special type of reciprocating air compressor that uses a diaphragm to compress the air. Diaphragms are thin sheets of material that are used in the forming process of other products, and they are also used as an element in mechanical linkage.Diaphragm compressor is a special structure positive displacement compressor. The cylinder does not need to be lubricated, the sealing performance is good, the compression medium does not contact any lubricant, there is no pollution, and the compression purity can reach 99.999%. It is especially suitable for the compression, transportation, and bottling of high-value rare gases and highly corrosive, toxic, explosive, and radioactive gases.
Advantages
- The cylinder body parts adopt the structure without a matching plate, which reduces the difficulty of the assembly process and reduces the sealing surface;
- The new-type membrane cavity curve and the imported gas valve improve the volumetric efficiency of the compressor;
- The entire diaphragm type compressor is concentrated on a skid-mounted chassis, which is convenient for transportation and installation
Specification
V Type Diaphragm Compressor| Model |
Inlet pressure, bar |
Outlet pressure, bar |
Capacity, m3/min |
Power, kW |
Rotation speed, r/min |
|---|---|---|---|---|---|
| SLT-V |
4 |
350 |
0.08 | 3 | 400 |
| SLT-2V | 2.5 | 160 | 0.13 | 5.5 | 400 |
| SLT-2.5V | 13 |
150 |
0.66 | 15 | 400 |
| SLT-3V |
69 |
80 |
15.8 | 18.5 | 400 |
| SLT-V3 | 2 | 74 | 1 | 22 | 400 |
Z Type Diaphragm Compressor
| Model |
Inlet pressure, bar |
Outlet pressure, bar |
Capacity, m3/min |
Power, kW |
Rotation speed, r/min |
|---|---|---|---|---|---|
| SLT-Z | 7.5 | 25 | 0.8 | 7.5 | 400 |
| SLT-2Z | 10 | 70 | 1.8 | 15 | 360 |
| SLT-2.5Z | 176 |
200 |
0.8 | 11 | 400 |
| SLT-3Z | 150 | 650 | 1.66 | 22 | 400 |
L Type Diaphragm Compressor
| Model |
Inlet pressure, bar |
Outlet pressure, bar |
Capacity, m3/min |
Power, kW |
Rotation speed, r/min |
|---|---|---|---|---|---|
| SLT-L | 5 | 220 | 0.06 | 3 | 300 |
| SLT-L1 | 7 | 150 | 0.16 | 4 | 450 |
| SLT-L2 | 10 |
200 |
1.66 | 30 | 400 |
| SLT-L3 | 4.5 |
250 |
1.66 | 45 | 400 |
| SLT-L4 | 24.9 | 35 | 32.25 | 55 | 430 |
D Type Diaphragm Compressor
| Model |
Inlet pressure, bar |
Outlet pressure, bar |
Capacity, m3/min |
Power, kW |
Rotation speed, r/min |
|---|---|---|---|---|---|
| SLT-D | 11 | 25 | 24.16 | 75 | 400 |
| SLT-D2 | 6 | 38 | 9.5 | 90 | 400 |
| SLT-D3 | 17 |
180 |
9.66 | 110 | 400 |
| SLT-D4 | 14.4 |
200 |
10.8 | 160 | 420 |
| SLT-D5 | 4 | 135 | 9.16 | 185 | 420 |
| SLT-D6 | 12 | 210 | 18.3 | 250 | 375 |
