Fixed/PM VSD Speed Screw Air Compressor
Screw air compressor with air dryer.
Details
Characteristics
Capacity
—
1.0 - 42.0 m3/min
Power
—
5.5 - 250 kW

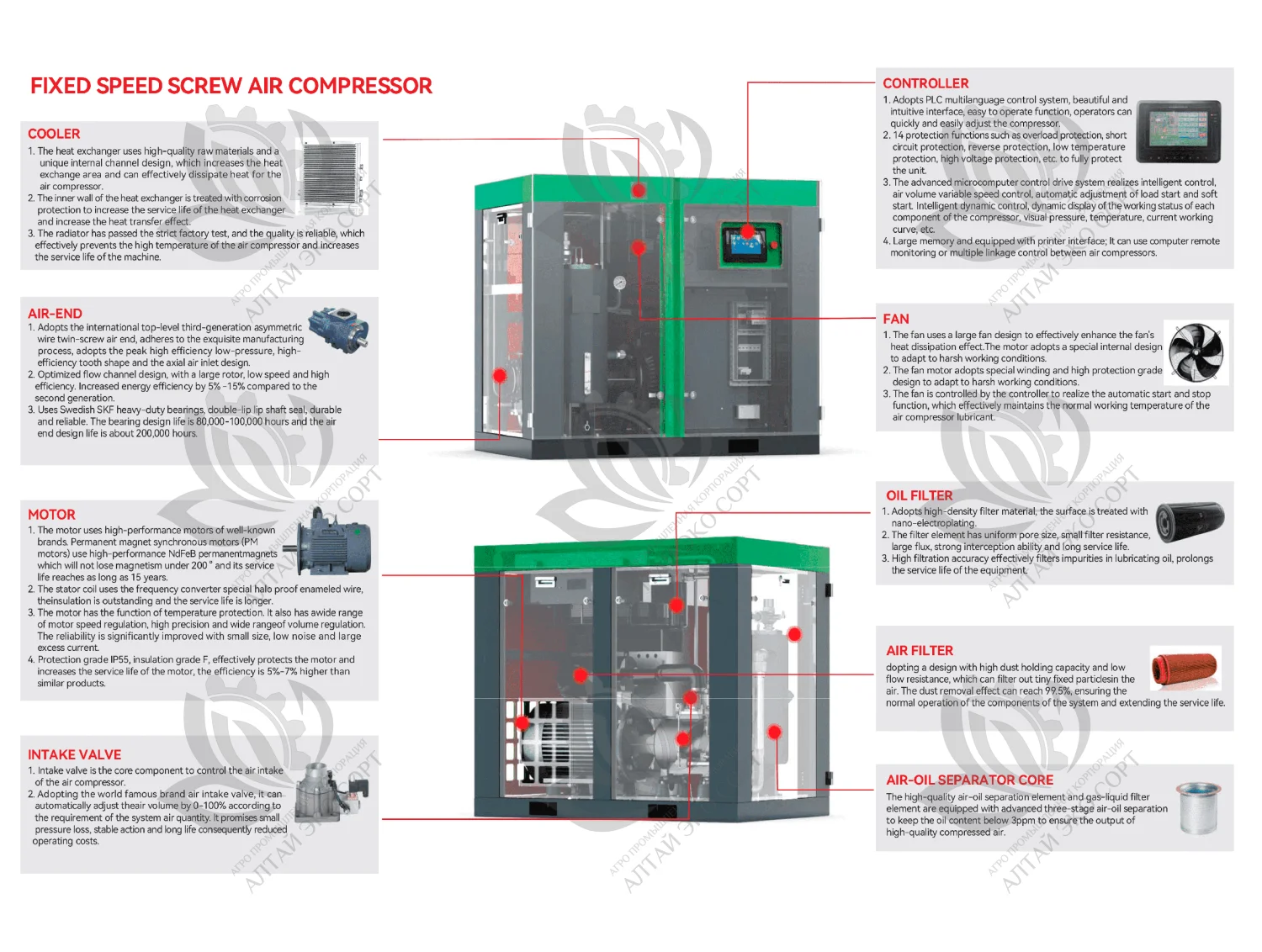

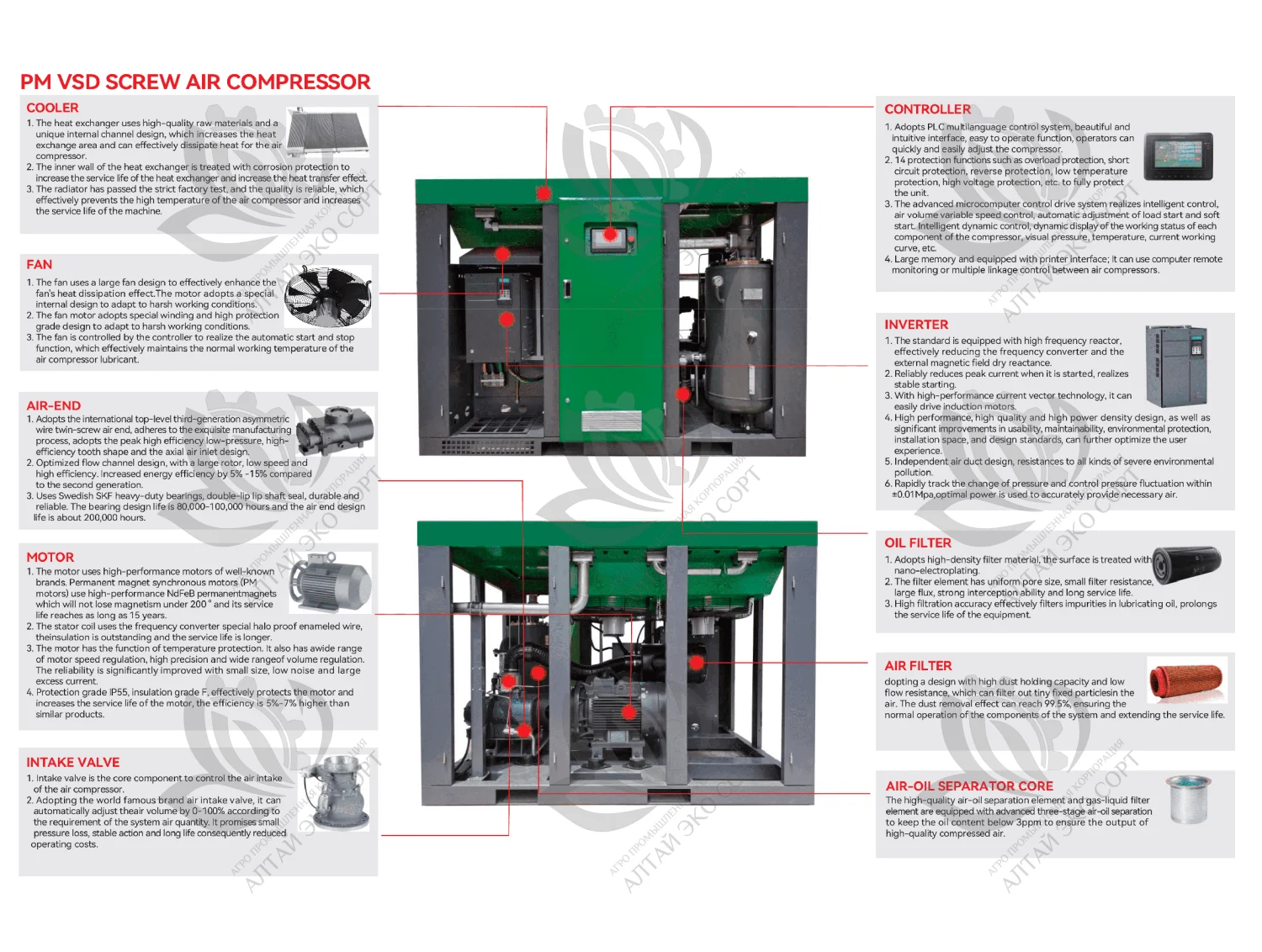

Fixed/PM VSD Speed Screw Air Compressor
Description
A screw air compressor is a type of rotary compressor which packs air because of screw air activity. The main advantage of this air compressor is that it can supply jets air continuously with the minimum variance in conveyance pressure. It is typically applied for low weight applications up to 8 bars.Features
- SLT series Air Screw Compressors can be equipped with belt or direct drive;
- Compressor operation is controlled and monitored via an intuitive LED display;
- Due to the thoughtful design of the compressor housing, simple maintenance is available to the user. Compressor operating units are easily accessible for technical inspection and replacement of spare parts
- The air-end and the motor are vibration-isolated from the maim compressor base frame;
- The electrical switchboard is installed in a noise-canceling unit with easy and convenient access to electrical components;
- The compressor housing is completely noise-vibration isolated, which allows you to achieve a very low noise level;
- Equipped with a phase control relay;
- High-efficiency oil cooling block, which reduces the operating temperature of the oil and increases the service life of the air-end.
Specification
Fixed Speed| Model |
Power, kW |
Air displacement, m3/min |
Driven method |
Overall size, mm |
Weight, kg |
|---|---|---|---|---|---|
| SLT-7.5 | 7.5 |
7 bar: 1.2 8 bar: 1.1 10 bar: 0.9 12 bar: 0.8 |
Y-△ | 950x670x1030 | 250 |
| SLT-11 | 11 |
7 bar: 1.6 8 bar: 1.5 10 bar: 1.3 12 bar: 1.1 |
Y-△ | 1150x820x1130 | 400 |
| SLT-15 | 15 |
7 bar: 2.5 8 bar: 2.3 10 bar: 2.1 12 bar: 1.9 |
Y-△ | 1150x820x1130 | 400 |
| SLT-18.5 | 18.5 |
7 bar: 3.2 8 bar: 3.0 10 bar: 2.7 12 bar: 2.4 |
Y-△ | 1350x920x1230 | 550 |
| SLT-22 | 22 |
7 bar: 3.8 8 bar: 3.6 10 bar: 3.2 12 bar: 2.7 |
Y-△ | 1350x920x1230 | 550 |
| SLT-30 | 30 |
7 bar: 5.3 8 bar: 5.0 10 bar: 4.5 12 bar: 4.0 |
Y-△ | 1500x1020x1310 | 700 |
| SLT-37 | 37 |
7 bar: 6.8 8 bar: 6.2 10 bar: 5.6 12 bar: 5.0 |
Y-△ | 1500x1020x1310 | 750 |
| SLT-45 | 45 |
7 bar: 7.4 8 bar: 7.0 10 bar: 6.2 12 bar: 5.6 |
Y-△ | 1500x1020x1310 | 800 |
| SLT-55 | 55 |
7 bar: 10.0 8 bar: 9.2 10 bar: 8.5 12 bar: 7.6 |
Y-△ | 1900x1260x1600 | 1750 |
| SLT-75 | 75 |
7 bar: 13.4 8 bar: 12.6 10 bar: 11.2 12 bar: 10.0 |
Y-△ | 1900x1260x1600 | 1850 |
| SLT-90 | 90 |
7 bar: 16.2 8 bar: 15.0 10 bar: 13.8 12 bar: 12.3 |
Y-△ | 2450x1660x1700 | 1950 |
| SLT-110 | 110 |
7 bar: 21.0 8 bar: 19.8 10 bar: 17.4 12 bar: 14.8 |
Y-△ | 2450x1660x1700 | 2200 |
| SLT-132 | 132 |
7 bar: 24.5 8 bar: 23.2 10 bar: 20.5 12 bar: 17.4 |
Y-△ | 2450x1660x1700 | 2500 |
| SLT-160 | 160 |
7 bar: 29.4 8 bar: 28.3 10 bar: 25.0 12 bar: 21.1 |
Y-△ | 3400x2100x2260 | 3200 |
| SLT-185 | 185 |
7 bar: 32.3 8 bar: 31.9 10 bar: 28.5 12 bar: 24.8 |
Y-△ | 3760x2100x2260 | 3200 |
| SLT-200 | 200 |
7 bar: 35.8 8 bar: 34.4 10 bar: 32.6 12 bar: 28.0 |
Y-△ | 2650x1488x1900 | 4400 |
| SLT-250 | 250 |
7 bar: 45.9 8 bar: 44.0 10 bar: 36.3 12 bar: 33.8 |
Y-△ | 3000x1740x2100 | 4700 |
Variable Speed
| Model |
Power, kW |
Air displacement, m3/min |
Driven method |
Overall size, mm |
Weight, kg |
|---|---|---|---|---|---|
| SLT-7.5V | 7.5 |
7 bar: 1.2 8 bar: 1.1 10 bar: 0.9 12 bar: 0.8 |
PM VSD | 950x670x1030 | 250 |
| SLT-11V | 11 |
7 bar: 1.6 8 bar: 1.5 10 bar: 1.3 12 bar: 1.1 |
PM VSD | 1150x820x1130 | 400 |
| SLT-15V | 15 |
7 bar: 2.5 8 bar: 2.3 10 bar: 2.1 12 bar: 1.9 |
PM VSD | 1150x820x1130 | 400 |
| SLT-18.5V | 18.5 |
7 bar: 3.2 8 bar: 3.0 10 bar: 2.7 12 bar: 2.4 |
PM VSD | 1350x920x1230 | 550 |
| SLT-22V | 22 |
7 bar: 3.8 8 bar: 3.6 10 bar: 3.2 12 bar: 2.7 |
PM VSD | 1350x920x1230 | 550 |
| SLT-30V | 30 |
7 bar: 5.3 8 bar: 5.0 10 bar: 4.5 12 bar: 4.0 |
PM VSD | 1500x1020x1310 | 700 |
| SLT-37V | 37 |
7 bar: 6.8 8 bar: 6.2 10 bar: 5.6 12 bar: 5.0 |
PM VSD | 1500x1020x1310 | 750 |
| SLT-45V | 45 |
7 bar: 7.4 8 bar: 7.0 10 bar: 6.2 12 bar: 5.6 |
PM VSD | 1500x1020x1310 | 800 |
| SLT-55V | 55 |
7 bar: 10.0 8 bar: 9.2 10 bar: 8.5 12 bar: 7.6 |
PM VSD | 1900x1260x1600 | 1750 |
| SLT-75V | 75 |
7 bar: 13.4 8 bar: 12.6 10 bar: 11.2 12 bar: 10.0 |
PM VSD | 1900x1260x1600 | 1850 |
| SLT-90V | 90 |
7 bar: 16.2 8 bar: 15.0 10 bar: 13.8 12 bar: 12.3 |
PM VSD | 2450x1660x1700 | 1950 |
| SLT-110V | 110 |
7 bar: 21.0 8 bar: 19.8 10 bar: 17.4 12 bar: 14.8 |
PM VSD | 2450x1660x1700 | 2200 |
| SLT-132V | 132 |
7 bar: 24.5 8 bar: 23.2 10 bar: 20.5 12 bar: 17.4 |
PM VSD | 2450x1660x1700 | 2500 |
| SLT-160V | 160 |
7 bar: 29.4 8 bar: 28.3 10 bar: 25.0 12 bar: 21.1 |
PM VSD | 3400x2100x2260 | 3200 |
| SLT-185V | 185 |
7 bar: 32.3 8 bar: 31.9 10 bar: 28.5 12 bar: 24.8 |
PM VSD | 3760x2100x2260 | 3200 |
| SLT-200V | 200 |
7 bar: 35.8 8 bar: 34.4 10 bar: 32.6 12 bar: 28.0 |
PM VSD | 2650x1488x1900 | 4400 |
| SLT-250V | 250 |
7 bar: 45.9 8 bar: 44.0 10 bar: 36.3 12 bar: 33.8 |
PM VSD | 3000x1740x2100 | 4700 |
