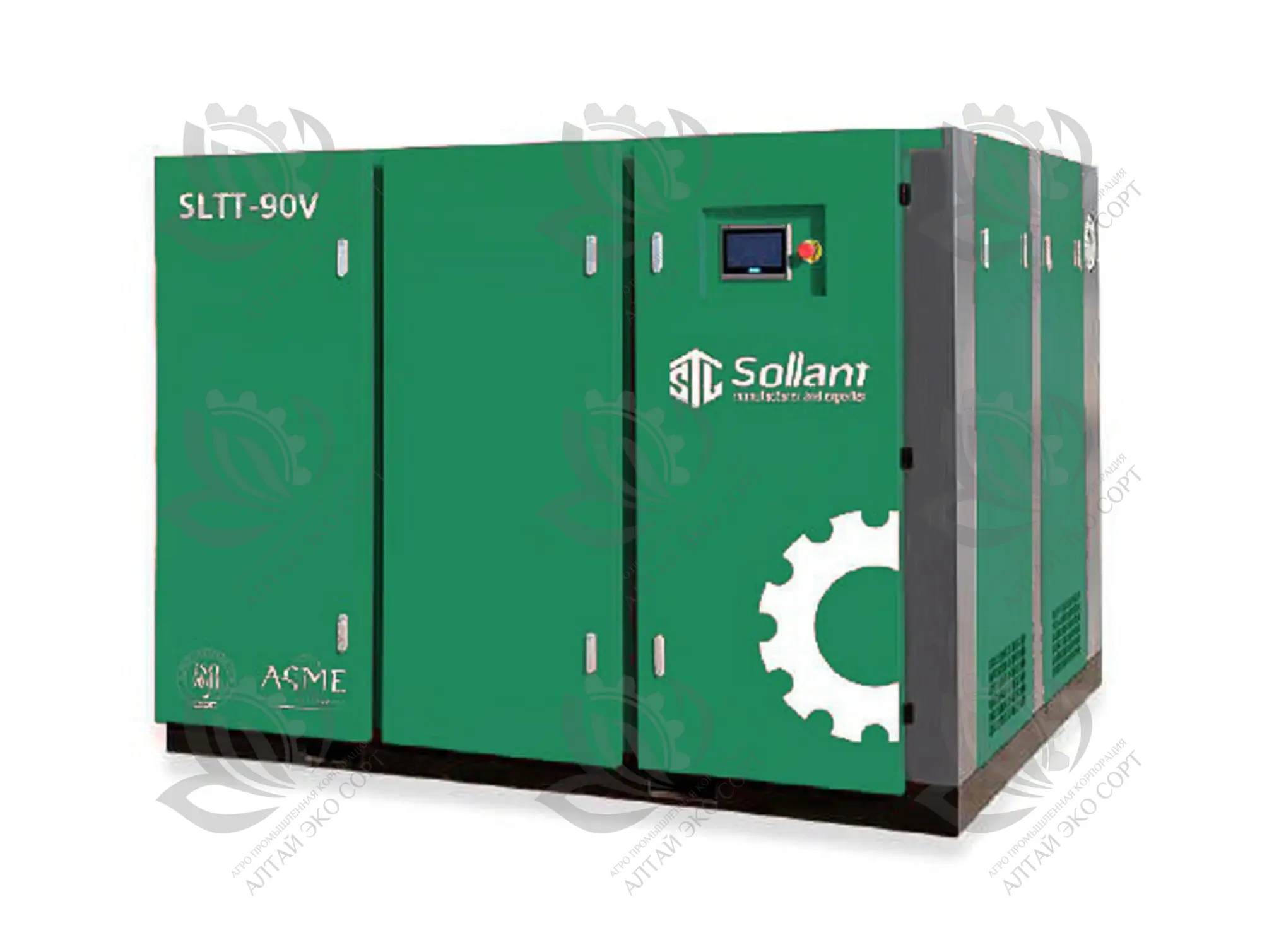

Two-Stage PM VSD Air Compressor Series
Two-stage PM VSD air compressor mainframe is more efficient and more energy-saving.
Details
Two-Stage PM VSD Air Compressor Series
Description

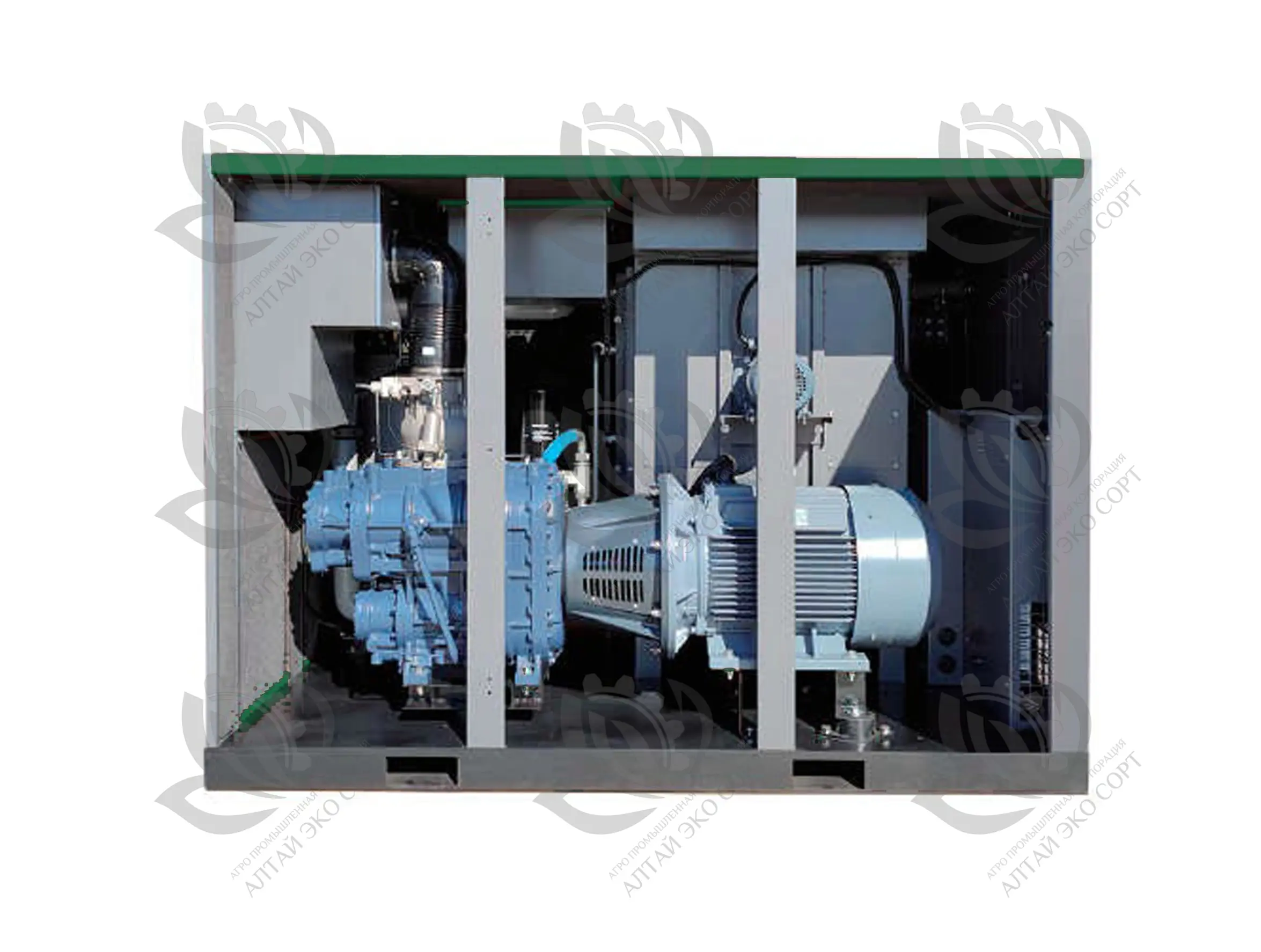

The compression process is that natural air enters the first stage compression through an air filter, and is mixed with a small amount of lubricating oil in the compression chamber, and the mixed gas is compressed to the interstage pressure. The compressed gas enters the cooling channel and comes into contact with a large amount of oil mist, which greatly reduces the temperature. The cooled compressed gas enters the second-stage rotor, undergoes two-stage compression, and is compressed to the final exhaust pressure. Finally, the compressor is discharged through the exhaust flange to complete the entire compression process.The use of a two-stage compression air compressor can effectively reduce energy consumption and bring higher power and gas value.
Specification
| Model |
Working pressure, bar |
Capacity, m3/min |
Power, kW |
Noise, dB |
Air outlet pipe diameter |
Weight, kg |
Overall size, mm |
|---|---|---|---|---|---|---|---|
| SLTT-22V |
8 10 13 |
1.85-4.1 1.65-3.4 / |
22 | 65±3 | G2 | 1500 | 1860х1180х1430 |
| SLTT-37V |
8 10 13 |
2.3-7.7 1.9-6.9 / |
37 | 65±3 | G2 | 1800 | 1860х1180х1430 |
| SLTT-45V |
8 10 13 |
3.2-10.5 2.2-7.8 2.5-6.1 |
45 | 65±3 | G2 | 2000 | 1860х1180х1430 |
| SLTT-55V |
8 10 13 |
3.9-13.2 3.1-10.7 2.6-8.8 |
55 | 65±3 | G2 | 2450 | 2160х1350х1750 |
| SLTT-75V |
8 10 13 |
5.0-16.8 4.1-13.8 3.6-12.3 |
75 | 68±3 | G2 | 2550 | 2160х1350х1750 |
| SLTT-90V |
8 10 13 |
6.0-20.1 5.2-17.3 4.8-15.9 |
90 | 70±3 | DN65 | 3250 | 2420х1530х1720 |
| SLTT-110V |
8 10 13 |
7.1-23.5 5.9-19.8 5.3-17.8 |
110 | 72±3 | DN80 | 3600 | 2650х1600х1850 |
| SLTT-132V |
8 10 13 |
8.0-28.1 7.3-24.3 6.1-20.2 |
132 | 74±3 | DN80 | 3700 | 2650х1600х1850 |
| SLTT-160V |
8 10 13 |
10.1-33.6 7.3-24.3 6.1-20.2 |
160 | 75±3 | DN100 | 4250 | 3350х1900х1950 |
| SLTT-185V |
8 10 13 |
12.4-38.7 10.4-34.8 9.7-32.3 |
185 | 76±3 | DN100 | 4650 | 3350х1900х1950 |
| SLTT-200V |
8 10 13 |
12.8-42.6 12.2-40.5 10.6-35.1 |
200 | 76±3 | DN100 | 5550 | 3350х1900х1950 |
| SLTT-220V |
8 10 13 |
14.2-47.3 12.8-42.5 12.0-37.4 |
220 | 78±3 | DN100 | 5650 | 3700х2060х2150 |
| SLTT-250V |
8 10 13 |
18.5-52.8 15.1-48.3 13.3-43.0 |
250 | 78±3 | DN100 | 6450 | 3700х2060х2150 |
