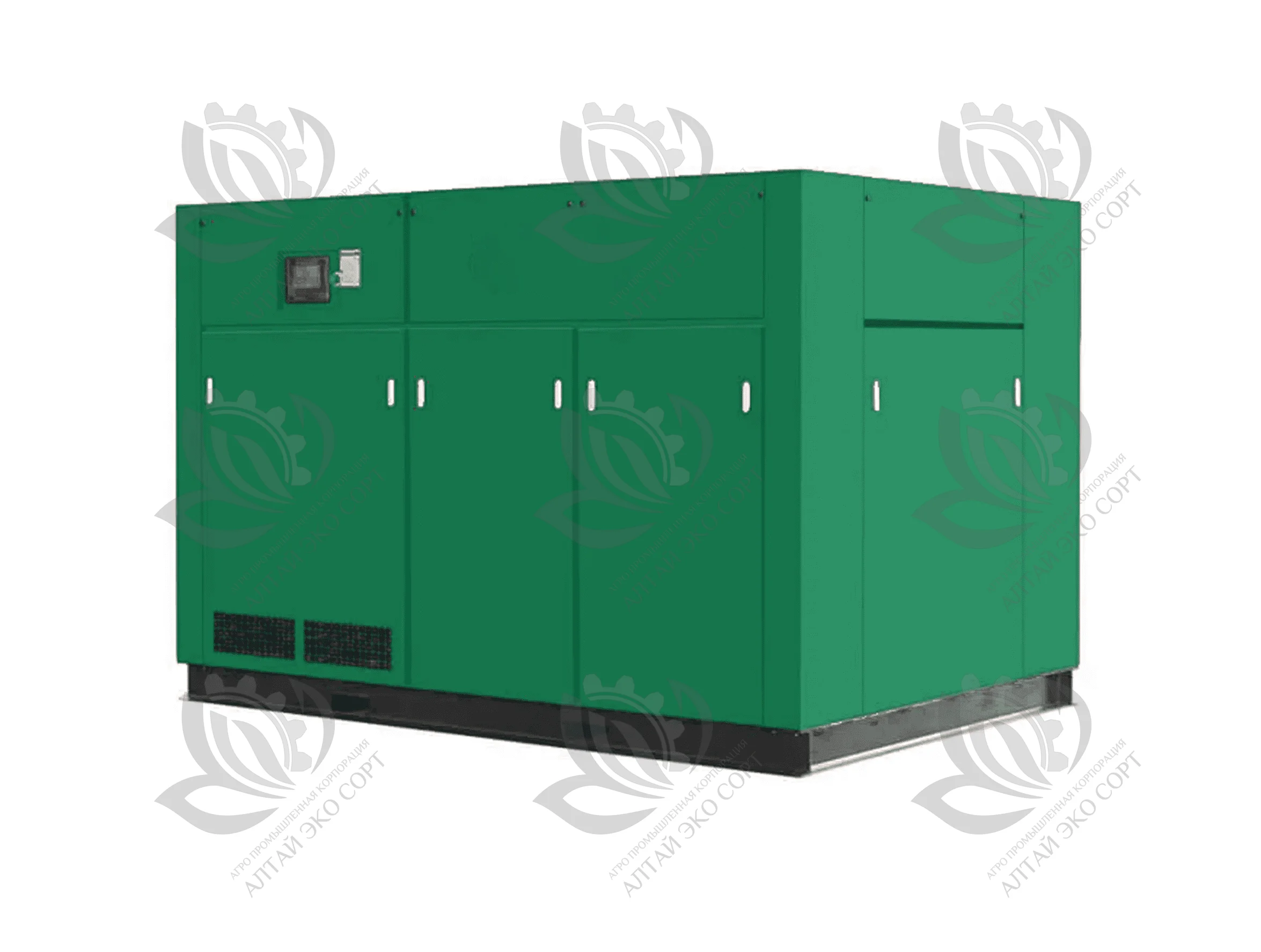

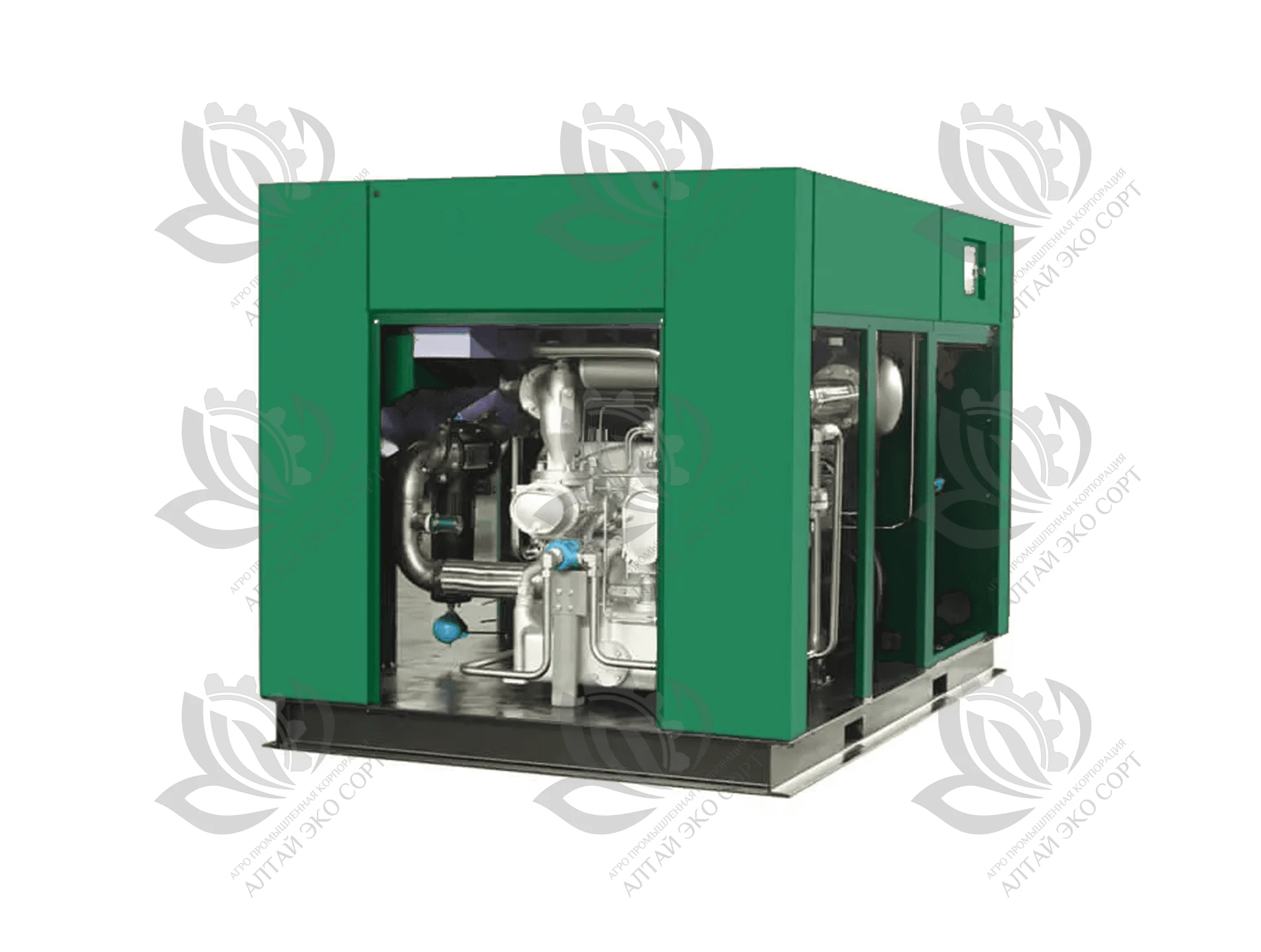

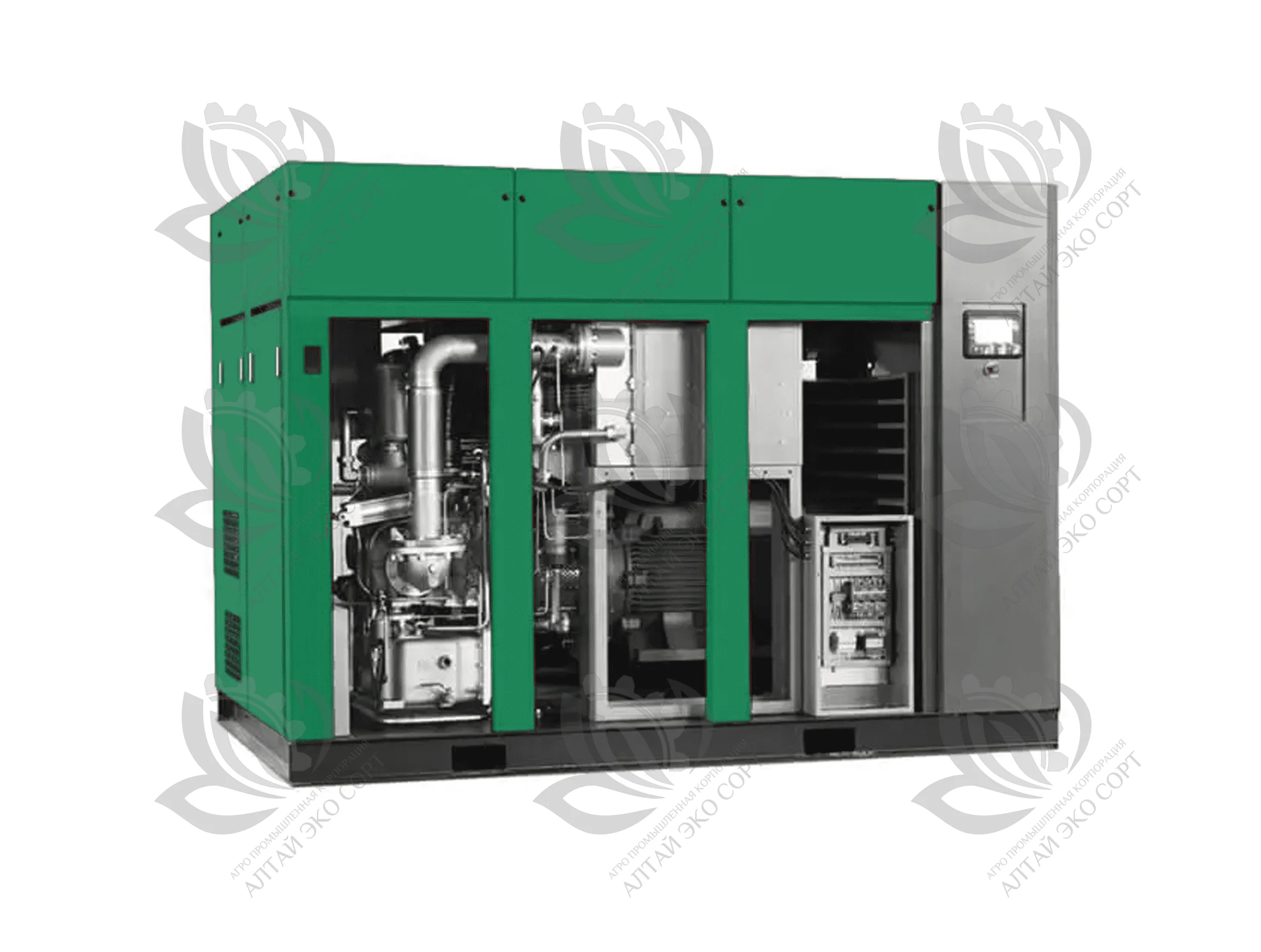

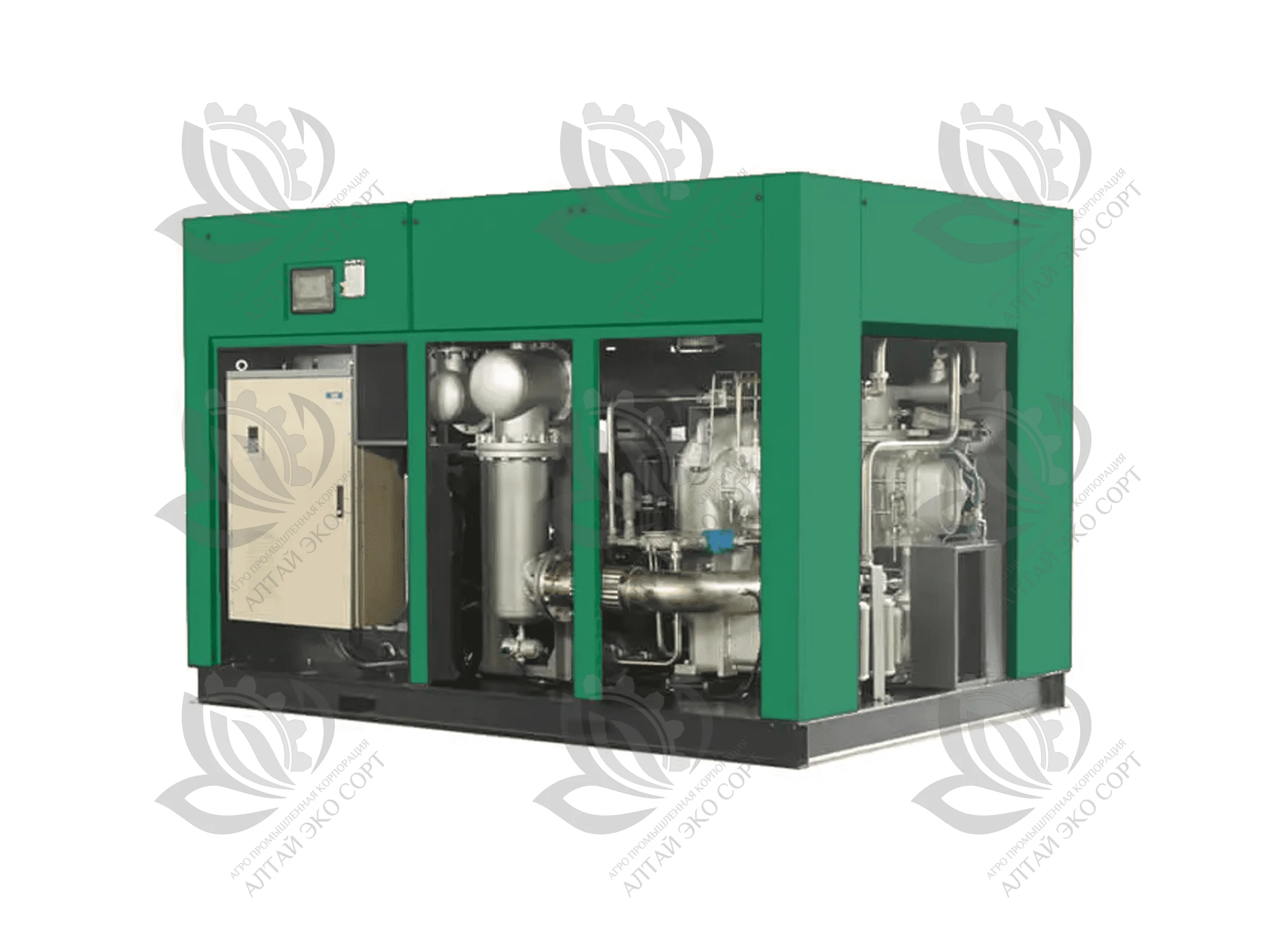

Dry Oil-Free Screw Air Compressor
Dry Oil-Free Screw Air Compressor
Advantages
- Clean, and oil-free compressed air;
- Significant energy-saving, environmental-friendly
- IE3 motor, save your electricity cost;
- Multiple noise reduction design;
- 304 stainless steel pipe, it will not rust and corrode under high-temperature conditions;
- No pollution, environmental protection, no oil, and carbon pollution in the air system;
- Low energy consumption, low operating cost;
- An intelligent control system, reliable software design, support multiple languages.
Specification
Variable Speed| Model |
Capacity, m3/min |
Power, kW |
Noise, dB |
Air outlet pipe diameter |
Weight, kg (air-cooled) |
Weight, kg (water-cooled) |
Overall size, mm (air-cooled) |
Overall size, mm (water-cooled) |
|---|---|---|---|---|---|---|---|---|
| SLTOF-45VD |
7 bar: 4.4-7.6 8 bar: 4.4-7.6 10 bar: 3.9-6.9 |
45 | 69±3 | DN50 | 2650 | 2700 | 2200х1400х2000 | 2300х1500х1720 |
| SLTOF-55VD |
7 bar: 5.6-9.6 8 bar: 5.1-8.9 10 bar: 4.5-7.9 |
55 | 69±3 | DN50 | 2850 | 2900 | 2200х1400х2000 | 2300х1500х1720 |
| SLTOF-75VD |
7 bar: 7.3-12.5 8 bar: 7.3-12.5 10 bar: 6.5-11.2 |
75 | 70±3 | DN50 | 2950 | 2950 | 2200х1400х2000 | 2300х1500х1720 |
| SLTOF-90VD |
7 bar: 9.4-16.0 8 bar: 8.5-14.5 10 bar: 7.5-12.9 |
90 | 71±3 | DN50 | 3000 | 3550 | 2200х1400х2000 | 2300х1500х1720 |
| SLTOF-110VD |
7 bar: 11.5-19.5 8 bar: 11.5-19.5 10 bar: 9.5-16.2 |
110 | 71±3 | DN65 | 3500 | 3600 | 3000х1990х2180 | 2700х1800х1830 |
| SLTOF-132VD |
7 bar: 13.6-23.0 8 bar: 13.6-23.0 10 bar: 11.8-20.0 |
132 | 73±3 | DN65 | 3550 | 3750 | 3000х1990х2180 | 2700х1800х1830 |
| SLTOF-160VD |
7 bar: 15.4-26.0 8 bar: 15.4-26.0 10 bar: 13.9-23.5 |
160 | 73±3 | DN65 | 3650 | 4200 | 3000х1990х2180 | 2700х1800х1830 |
| SLTOF-185VD |
7 bar: 17.8-30.0 8 bar: 17.8-30.0 10 bar: 15.4-26.0 |
185 | 74±3 | DN65 | 4100 | 4500 | 3000х1990х2180 | 2700х1800х1830 |
| SLTOF-200VD |
7 bar: 20.0-33.6 8 bar: 20.0-33.6 10 bar: 17.3-29.2 |
200 | 74±3 | DN100 | 5200 | 3100х2100х2065 | ||
| SLTOF-250VD |
7 bar: 27.4-46.0 8 bar: 25.0-42.0 10 bar: 22.4-37.6 |
250 | 74±3 | DN100 | 2900 | 3100х2100х2065 |
Fixed Speed
| Model |
Capacity, m3/min |
Power, kW |
Noise, dB |
Air outlet pipe diameter |
Weight, kg (air-cooled) |
Weight, kg (water-cooled) |
Overall size, mm (air-cooled) |
Overall size, mm (water-cooled) |
|---|---|---|---|---|---|---|---|---|
| SLTOF-45VD |
7 bar: 7.6 8 bar: 7.6 10 bar: 6.9 |
45 | 69±3 | DN50 | 2600 | 2650 | 2200х1400х2000 | 2300х1500х1720 |
| SLTOF-55VD |
7 bar: 9.6 8 bar: 8.9 10 bar: 7.9 |
55 | 69±3 | DN50 | 2800 | 2850 | 2200х1400х2000 | 2300х1500х1720 |
| SLTOF-75VD |
7 bar: 12.5 8 bar: 12.5 10 bar: 11.2 |
75 | 70±3 | DN50 | 2900 | 2850 | 2200х1400х2000 | 2300х1500х1720 |
| SLTOF-90VD |
7 bar: 16.0 8 bar: 14.5 10 bar: 12.9 |
90 | 71±3 | DN50 | 3100 | 2850 | 2200х1400х2000 | 2300х1500х1720 |
| SLTOF-110VD |
7 bar: 19.5 8 bar: 19.5 10 bar: 16.2 |
110 | 71±3 | DN65 | 3400 | 3450 | 3000х1990х2180 | 2700х1800х1830 |
| SLTOF-132VD |
7 bar: 23.0 8 bar: 23.0 10 bar: 20.0 |
132 | 73±3 | DN65 | 3450 | 3500 | 3000х1990х2180 | 2700х1800х1830 |
| SLTOF-160VD |
7 bar: 26.0 8 bar: 26.0 10 bar: 23.5 |
160 | 73±3 | DN65 | 3550 | 3650 | 3000х1990х2180 | 2700х1800х1830 |
| SLTOF-185VD |
7 bar: 30.0 8 bar: 30.0 10 bar: 26.0 |
185 | 74±3 | DN65 | 3950 | 4050 | 3000х1990х2180 | 2700х1800х1830 |
| SLTOF-200VD |
7 bar: 33.6 8 bar: 33.6 10 bar: 29.2 |
200 | 74±3 | DN100 | 4500 | 3100х2100х2065 | ||
| SLTOF-250VD< |
7 bar: 46.0 8 bar: 42.0 10 bar: 37.6 |
250 | 74±3 | DN100 | 5200 | 3100х2100х2065 |
