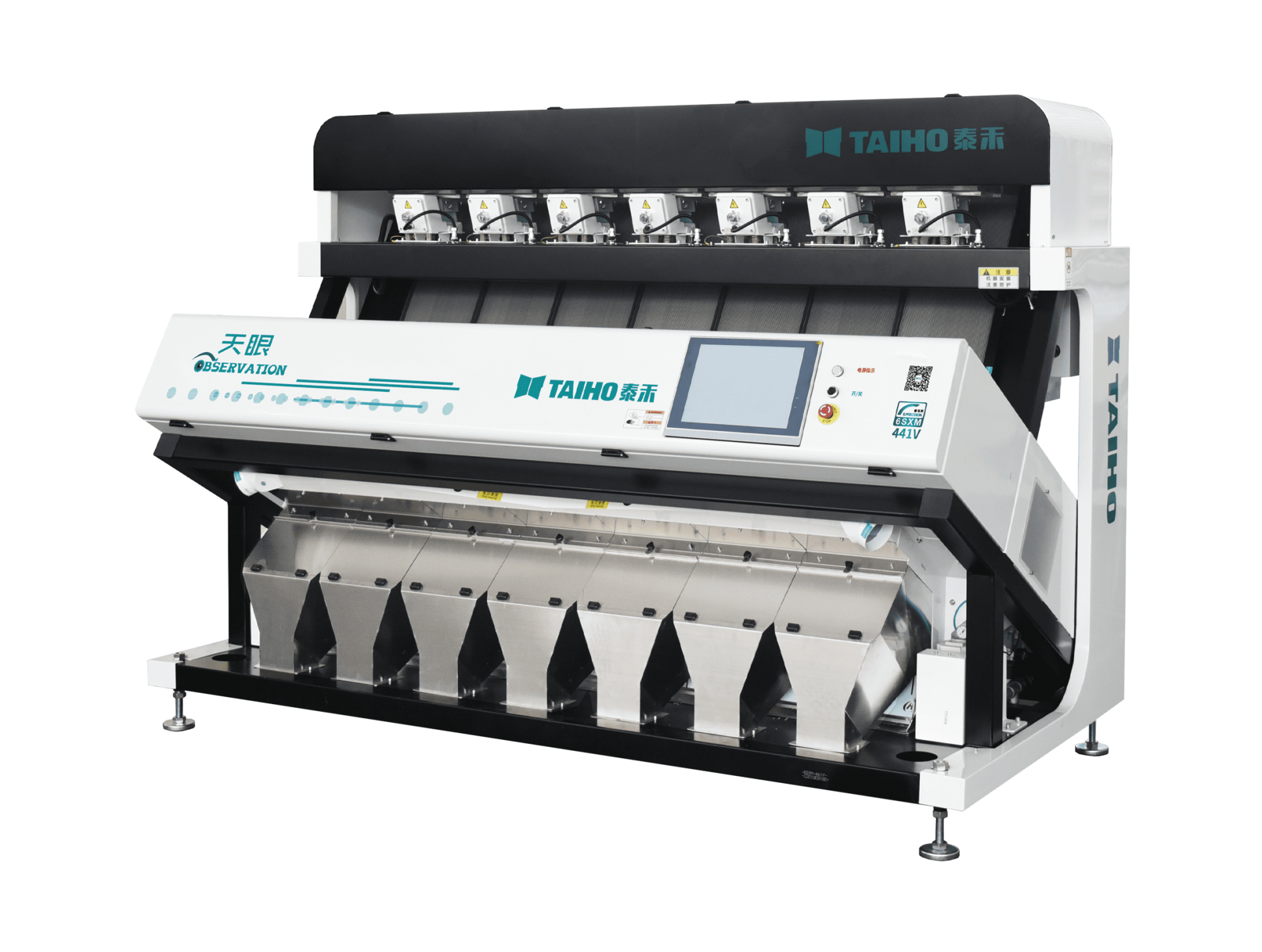

Observation 7 chutes

Description

Observation series Color Sorter was developed by engineers of Hefei Taihe Optoelectronic Technology using advanced optical sorting technologies.

Color Sorter has a simple and intuitive interface, including Russian language, which allows any user to разобраться quickly and easily how to set up machine for sorting. An intelligent adjustment mode is available, which makes it possible to get high-quality sorting in less than 10 minutes. The setting modes are in open access.

In machine there are full-color RGB cameras with 5400 pixels resolution in conjunction with a powerful next-generation processor capable of processing 25,000 frames per second.

Pneumatic valves have an increased service life of at least 12 billion cycles, while they have a high rate of fire, consuming no more than 800 liters per minute of compressed air per 1 сhute.

Remote control and diagnosis using any mobile device or PC.

Chutes is to 16, this allows you to select the necessary performance of the color sorter for client task, without installing two or more equipment.

Advantages

• CCD camera resolution - 5400 pixels;
• High-end customized solenoid valve;
• Low-temperature concentrated LED light source with adjustable brightness and a choice of 16 million colors;
• Equipped with AI self-collaborative sensing technology;
• Center positioning elimination technology;
• Intelligent sorting, color sorting + shape sorting;
• Intelligent product level sensor in the hopper;
• Automatic setting of the product sorting program, remote control;
• Installed impurities list;
• No blind spots;
• 15" display with dust and scratch protection;
• SOC platform with AI deep learning technology.

Specification
